UMCC
3-Way Dividers
Frequencies from DC to 20GHz
Narrow Bands to Multi-Octave Bands
Lumped Element, Microstrip, or Stripline Constructions

Excellent Phase and Amplitude Tracking


Sales/Technical Contact Email:  Sales@UMCC111.com
- Specifications are subject to change without notice
- Click on  the product model number  for Specifications-Sheet in PDF
- Click on  "" to see the actual response curves (subject to availability)

Low Frequency Wide Band 3-Way Dividers

Model
Number
Freq.
Range
(MHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
() Max
Power (2) cw/avg
Load VSWR
Outline
Drawing

S Out <2:1
PD-0010-3S
PD-0010-3B
PD-0010-3N
0.01 - 10 0.4 25 1.30 1.30 0.1 0.5 3 W 10 W (-3S) with
SMA(f)


(-3B)  with
BNC(f)


(-3N) with
N(f)
PD-0500-3S
PD-0500-3B
PD-0500-3N

Response Curves in PDF
1 - 200 0.8 20 1.35 1.35 0.1 0.5 2 W 8 W
200 - 500 1.4 0.2 1.5
PD-1000-3S
PD-1000-3B
PD-1000-3N

Response Curves in PDF
10 - 500 1.1 19 1.50
(3)
1.50 0.1 1.5 2 W 8 W
500-1000 1.5 0.2 3

1) Loss due to division is 4.77 dB
2) Power at SUM port
3) 1.65:1 over 10-30 MHz


Narrow-Band 3-Way Dividers

Model
Number
Freq.
Range
(GHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
() Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
S Out <2:1
PS-C000-3S
Response Curves in PDF
0.8 - 2.2 0.5 22 1.30 1.30 0.1 1 2 W 20 W Fig.1
PS-D000-3S
Response Curves in PDF
1.7 - 4.5 0.4 20 1.30 1.30 0.15 5 2 W 20 W Fig.3
PS-E000-3S
Response Curves in PDF
3.5 - 8.5 0.5 20 1.30 1.30 0.2 5 1 W 10 W Fig.4
PD-F000-3S
Response Curves in PDF
8 - 12.4 0.7 20 1.45 1.35 0.2 3 1 W 10 W Fig.6
PD-X000-3S
Response Curves in PDF
8 - 14 0.7 18 1.45 1.45 0.2 5 1 W 10 W Fig.6
PD-G000-3S
Response Curves in PDF
12.4 - 18 0.8 17 1.40 1.40 0.2 6 1 W 10 W Fig.6
PD-P000-3S
Response Curves in PDF
8.5 - 20 1.0 18 1.50 1.50 0.2 4 1 W 10 W Fig.6

1) Loss due to division is 4.77 dB
2) Power at SUM port


Wide-Band 3-Way Dividers

Model
Number
Freq.
Range
(GHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
() Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
S Out <2:1
PS-J000-3S
Response Curves in PDF
0.35 - 2 0.5 21 1.35 1.25 0.1 2 2 W 20 W Fig.1
PS-W000-3S
Response Curves in PDF
0.49 - 2.85 0.8 23 1.35 1.25 0.15 2 2 W 20 W Fig.1
PS-L000-3S 1.9 - 8.5 0.5 18 1.50 1.40 0.15 2.5 1 W 10 W Fig.4
PS-M000-3S
Response Curves in PDF
4 - 12.4 0.9 18 1.60 1.40 0.15 3.5 1 W 10 W Fig.4
PD-N000-3S
Response Curves in PDF
6 - 18 1.5 17 1.70 1.50 0.15 5 1 W 10 W Fig.8

1) Loss due to division is 4.77 dB
2) Power at SUM port


Multi-Octave-Band 3-Way Dividers

Model
Number
Freq.
Range
(GHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
() Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
S Out <2:1

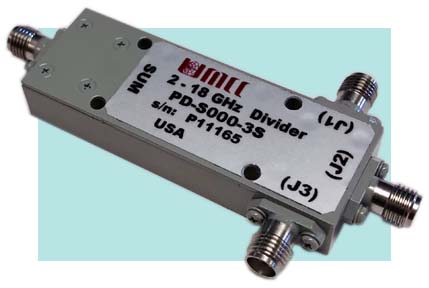

PD-S000-3S
2 - 18 2.0 17 1.80 1.70 0.5 7 1 W 10 W Fig.7

1) Loss due to division is 4.77 dB
2) Power at SUM port


Resistive 3-Way Divider

Model
Number
Freq.
Range
(GHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB)
Nominal
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
() Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
S Out <2:1
PD-Z000-3S
Response Curves in PDF
DC - 12 1.2 9.5 1.30 1.30 0.3 6 0.5 W 1 W Fig.5

1) Loss due to division is 9.54 dB, %67 power is dissipated internally
2) Power at SUM port



All Models:
 Impedance: 50 W
 Connectors: SMA (f)

Environmental Ratings:
 Temperature:
- Operating -55 C to +95C
- Storage -60 C to +110C
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B
