UMCC

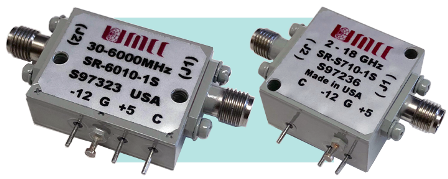

SP1T Switches
Frequencies from 10MHz to 20GHz
Absorptive or Reflective
 All with High Speed TTL Driver
Reverse Voltage Protection
Available with Variety of Options
 ECCN: EAR99

Sales/Technical Contact Email:  Sales@UMCC111.com



RF Circuit / Reflective SPST



RF Circuit / Absorptive SPST





  Common Specifications

  Available Options
    > Specifications are subject to change without notice
> for Specifications-Sheet in PDF, click on  the product model number
> to see the actual response curves, click on  ""  (subject to availability)

Broadband RF Pulse Modulators (Reflective)
Frequencies from 1- 20GHz

Model No.
 Frequency
(GHz)		 Insertion
Loss
(dB) Max		 Isolation
(dB) Min		 VSWR
Max		 Rise/Fall
Time
Max		 On/Off
Time
Max		 Power
Handling, Max		 Supply
Voltage		 Outline
Drawing
Cw / Avg Peak
2 - 18 GHz
SR-S400-1S
(Reflective)
Response Curves in PDF		 2 - 18 2.5 75 1.8:1 3 ns 25 ns +24dbm 8W
(1μS , PW)		 +5(-/+0.25)V / 50mA
-12(-/+0.5)V / 50mA		 Fig.1
SR-S600-1S
(Reflective)
 High Isolation
 Response Curves in PDF		 2 - 18 2.6 100 1.8:1 3 ns 25 ns +24dbm 8W
(1μS , PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 50mA
1 - 18 GHz
SR-T400-1S
(Reflective)
 Response Curves in PDF		 1 - 2 2.6 60 1.8:1 4 ns 25 ns +24dbm 8W
(1μS , PW)		 +5(-/+0.25)V / 50mA
-12(-/+0.5)V / 50mA		 Fig.1
2 - 18 75

2 - 20 GHz
SR-P400-1S
(Reflective)
Response Curves in PDF		 2 - 20 2.5 75 1.8:1 3 ns 25 ns +24dbm 8W
(1μS , PW)		 +5(-/+0.25)V / 50mA
-12(-/+0.5)V / 50mA		 Fig.1

Recommended Options (see option table) :   "Video Filtering",  "SMC or SMB connectors for control",  " Control connector termination"

Broadband SP1T Switches (Reflective / Absorptive)
Frequencies from 10Mhz to 20GHz

Model No.
 Frequency
(GHz)		 Insertion
Loss
(dB) Max		 Isolation
(dB) Min		 VSWR
Max		 Rise/Fall
Time
Max		 On/Off
Time
Max		 Power
Handling, Max		 Supply
Voltage		 Outline
Drawing
Cw / Avg Peak

10 MHz - 3 GHz
SR-3000-1S
(Reflective) 		0.01 - 0.02 2.2 65 1.8:1 100 ns 250 ns +27dbm
(+23dBm Max
Below 100MHz)		 5W
(1μS, PW @
10% Duty)		 +5(-/+0.25)V / 50mA
-12(-/+0.5)V / 60mA		 Fig.1
0.02 - 2 1.4:1
2 - 3 60
SR-3010-1S
(Absorptive)
0.01 - 0.02 2.2 70 1.8:1 100 ns 250 ns +27dbm
(+23dBm Max
Below 100MHz)		 5W
(1μS , PW @
10% Duty)		 +5(-/+0.25)V / 80mA
-12(-/+0.5)V / 80mA
0.02 - 2 1.4:1
2 - 3 65
40 MHz - 4 GHz
SR-A400-1S
(Reflective)
Low Loss
0.04 - 2 0.8 40 1.3:1 3.8 μs 4 μs +30dbm 10W
(10μS, PW)		 +5(-/+0.25)V / 60mA
-5(-/+0.25)V / 50mA		 Fig.1
2 - 4 1.0 35
SR-A410-1S
(Absorptive)
Low Loss
 0.04 - 2 1.0 50 1.3:1 3.8 μs 4 μs +30dbm 10W
(10μS, PW)		 +5(-/+0.25)V / 60mA
-5(-/+0.25)V / 50mA
2 - 4 1.5 40
20 MHz - 6 GHz
SR-B300-1S
(Reflective)
High Speed
 		0.02 - 6 2.5 70 1.6:1 200 ns 375 ns +27dbm
(+23dBm Max
Below 100MHz)		 5W
(1μS, PW @
10% Duty)		 +5(-/+0.25)V / 50mA
-5(-/+0.25)V / 40mA		 Fig.1
SR-B310-1S
(Absorptive)
 High Speed
 		0.02 - 6 2.5 75 1.6:1
 (1.75:1 Over
20-40 MHz)		 200 ns 375 ns +27dbm
(+23dBm Max
Below 100MHz)		 5W
(1μS, PW @
10% Duty)		 +5(-/+0.25)V / 50mA
-5(-/+0.25)V / 40mA
30 MHz - 6 GHz
SR-6000-1S
(Reflective)
High Isolation
 Response Curves in PDF		 0.03 - 6 2.6 85 1.5:1 150 ns 300 ns +27dbm
(+23dBm Max
Below 100MHz)		 5W
(1μS , PW @
10% Duty)		 +5(-/+0.25)V / 50mA
-12(-/+0.5)V / 70mA		 Fig.1
SR-6010-1S
(Absorptive)
High Isolation
 Response Curves in PDF		 0.03 - 6 2.8 90 1.6:1 150 ns 300 ns +27dbm
(+23dBm Max
Below 100MHz)		 5W
(1μS, PW @
10% Duty)		 +5(-/+0.25)V / 80mA
-12(-/+0.5)V / 80mA
0.2 - 4 GHz
SR-DA00-1S
(Reflective)
 High Isolation		 0.2 - 4 2.3 75 1.6:1 120 ns 220 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 50mA
-12(-/+0.5)V / 60mA		 Fig.1
SR-DA10-1S
(Absorptive)
High Isolation
 Response Curves in PDF		 0.2 - 4 2.4 85 1.6:1 120 ns 220 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 80mA
-12(-/+0.5)V / 80mA
2 - 18 GHz
SR-S000-1S
(Reflective)
 Low Loss
 Response Curves in PDF 		2 - 18 2.2 80 1.6:1 15 ns 50 ns +30dbm 20W
(1μS, PW)		 +5(-/+0.25)V / 70mA
-12(-/+0.5)V / 50mA		 Fig.1
SR-S010-1S
(Absorptive)
 Response Curves in PDF
Fast Switching		 2 - 8 2.7 65 1.6:1 15 ns 60 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA
8 - 14 55
14 - 18 50
SR-S01W-1S
(Absorptive)		 2 - 12 3.2 85 1.7:1 300 ns 400 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA
12 - 18 75
SR-S710-1S
(Absorptive)
 High Isolation
 Response Curves in PDF		 2 - 18 3.5 90 1.9:1 25 ns 80 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 80mA
-12(-/+0.5)V / 60mA		 Fig.2
1 - 18 GHz
SR-T000-1S
(Reflective)
 Low Loss
 Response Curves in PDF		 1 - 2 2.4 65 1.7:1 15 ns 50 ns +30dbm 20W
(1μS, PW)		 +5(-/+0.25)V / 70mA
-12(-/+0.5)V / 50mA		 Fig.1
2 - 18 80
SR-T010-1S
(Absorptive)		 1 - 8 2.9 65 1.6:1 35 ns 80 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA
8 - 14 55
14 - 18 50
SR-T01W-1S
(Absorptive)		 1 - 12 3.2 85 1.7:1 300 ns 400 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA
12 - 18 75
0.5 - 18 GHz
SR-U010-1S
(Absorptive)		 0.5 - 8 2.9 65 1.8:1 35 ns 80 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA		 Fig.1
8 - 14 55
14 - 18 50
SR-U01W-1S
(Absorptive)		 0.5 - 12 3.2 85 1.7:1 300 ns 400 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA
12 - 18 75
SR-U700-1S
(Reflective)
 High Isolation
 Response Curves in PDF		 0.5 - 12 2.8 95 1.8:1 20 ns 80 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 60mA		 Fig.2
12 - 18 80
SR-U710-1S
(Absorptive)
 High Isolation
 Response Curves in PDF		 0.5 - 18 3.3 90 1.9:1 25 ns 80 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 80mA
-12(-/+0.5)V / 60mA
0.2 - 18 GHz
SR-V040-1S
(Reflective)
 Response Curves in PDF		 0.2 - 8 2.5 60 1.7:1 75 ns 150 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-5(-/+0.25)V / 50mA		 Fig.1
8 - 14 50
14 - 18 45
SR-V04W-1S
(Reflective)		 0.2 - 12 3.2 80 1.7:1 400 ns 500 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-5(-/+0.25)V / 50mA
12 - 18 70
SR-V010-1S
(Absorptive)
 Response Curves in PDF		 0.2 - 8 2.7 65 1.7:1 50 ns 120 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-5(-/+0.25)V / 50mA
8 - 14 55
14 - 18 50
SR-V01W-1S
(Absorptive)		 0.2 - 12 3.2 85 1.7:1 400 ns 500 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-5(-/+0.25)V / 50mA
12 - 18 75
0.3 - 18 GHz
SR-V700-1S
(Reflective)
 High Isolation
 Response Curves in PDF		 0.3 - 12 2.5 95 1.8:1 20 ns 100 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 60mA		 Fig.2
12 - 18 80
SR-V710-1S
(Absorptive)
 High Isolation
 Response Curves in PDF		  0.3 - 18 3.0 90 1.85:1 25 ns 100 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 70mA
-12(-/+0.5)V / 50mA
2 - 20 GHz
SR-P000-1S
(Reflective)
 Low Loss
 Response Curves in PDF		  2 - 20 2.7 80 1.9:1 15 ns 50 ns +30dbm 20W
(1μS, PW)		 +5(-/+0.25)V / 70mA
-12(-/+0.5)V / 50mA		 Fig.1
SR-P010-1S
(Absorptive)
 Response Curves in PDF
Fast Switching		 2 - 8 3.1 65 1.8:1 15 ns 60 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA
8 - 14 55
14 - 18 50
18 - 20 45
SR-P01W-1S
(Absorptive)
 Response Curves in PDF		 2 - 12 3.6 85 1.8:1 300 ns 400 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 60mA
-12(-/+0.5)V / 75mA
12 - 20 75
1.5 - 20 GHz
SR-GS70-1S
(Absorptive)
 High Isolation
 Response Curves in PDF		  1.5 - 20 4.3 85 1.9:1 25 ns 70 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 80mA
-5(-/+0.25)V / 75mA		 Fig.1




All Models:
   Impedance: 50 Ω Nominal
   Control Input Characteristic: TTL, One Unit Load (1.6mA Sink / 40μA Source)
   Control Logic: 1-Control / Floating-High
Logic "0" for path "ON" ( 0 to +0.8V)
Logic "1" for path "OFF" (+2.2 to +5.0V)
   Connectors:
- RF Input / Output SMA (female), Removable
- Supply Solder Pins
- Control Solder Pins

Environmental Ratings:
   Temperature:
- Operating -55 degC to +95 degC
- Storage -60 degC to +110 degC
   Humidity: Mil-STD-202F, Method 103B Condition B
   Shock: Mil-STD-202F, Method 213B Condition B
   Vibration: Mil-STD-202F, Method 204D Condition B
   Altitude: Mil-STD-202F, Method 105C Condition B
   Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) units with combination of the following options may require some specification tradeoffs from the standard
2) Some options may not be available on all models
   Supply Voltages    Control Impedance
   A1)  +5 ( -/+ 0.25 )V  /  -5 ( -/+ 0.25 )V   D1) 50 Ω, Internally Terminated
  A2)  +5 ( -/+ 0.25 )V  /  -15 ( -/+ 0.5 )V
  A3)  +12 ( -/+ 0.5 )V  /  -12 ( -/+ 0.5 )V    Control Function
  A4)  +15 ( -/+ 0.5 )V  /  -15 ( -/+ 0.5 )V   F1) Inverse Logic, ("1" = Path "ON")

    RF Connectors    Video Suppression Filter
  B1) J1 SMA (M), J2 SMA (F)   G1) VF @ J2 Port <> 0.25dB additional Loss
B2) J1 SMA (F), J2 SMA (M) G2) VF @ J1 & J2 Ports <> 0.5dB additional Loss
B3) All SMA (M)
   Other Possible Options (Consult Factory)
    Control Connectors - Higher Isolation
C1) SMC (Jack), 50 Ω - Higher Power
  - Switch Without Driver
C2) SMB (Jack), 50 Ω - Other Logic Families and Controls
  - Etc.
