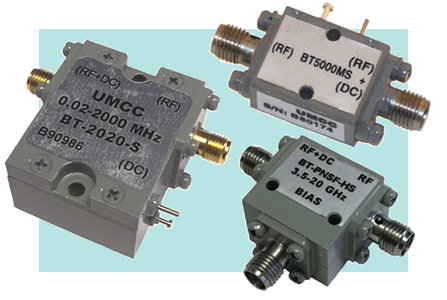

Bias-Tees

Frequencies from 10KHz to 20GHz

Sales/Technical Contact Email:  Sales@UMCC111.com

    > Specifications are subject to change without notice
>  for Specifications-Sheet in PDF, click on  the product model number

>  to see the actual response curves, click on  ""  (subject to availability)


Bias Tees

> Other connector options are available { click on the model number to see the available Options }
> For Bias/DC port with best impedance matching visit the Bias-T Diplexer page:
 Bias-T Diplexers

Model
Number
Frequency
Range
Insertion
Loss
(Max)
VSWR
(Max)
Isolation
Bias to RF
(Min)
AVG RF
Power
(Max)
Bias
Voltage
(Max)
Bias
Frequency
Bandwidth
Bias
Current
(Max)
Bias DC
Resistance
(Max)
Outline
Drawing
BT-2410-B
with
  BNC(f)

BT-2410-S
with SMA(f)

BT-2410-N
with  N(f)

Response Curves in PDF
10 KHz -
2400 MHz
1.1 dB
{1.4 dB over
10-20 KHz}
1.4 : 1
{1.7:1 over
20-30 KHz}
&
{2:1 over
 10-20 KHz}
40 dB
{35 dB Over
10-30 KHz}
20 W 100 V DC - 300 Hz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
400 mA 4.0 Ohm Fig.8-B
{ RF & RF+DC
with BNC(f) }

Fig.8-S
{ RF & RF+DC
with SMA(f) }

Fig.8-N
{ RF & RF+DC
with N(f) }
 Ultra Wide Band


BT-5010-S
 with SMA(f)


Response Curves in PDF
10 KHz -
5000 MHz
1.0 dB
{1.3dB Over
10-20 KHz}
1.35 : 1
{1.9 Over
10-30 KHz}
40 dB
{30 dB Over
10-20 KHz}
20 W 100 V DC - 300 Hz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
400 mA 4.0 Ohm

Fig.8-S
{ RF & RF+DC
with SMA(f) }

BT-1510-B
with  BNC(f)

BT-1510-S
with SMA(f)

BT-1510-N
with N(f)

Response Curves in PDF
10 KHz -
1500 MHz
1.1dB 1.35 : 1

{1.6:1 Over
10-20 KHz}
40 dB

{20dB Over
10-20KHz}
&
{30dB over
20-40KHz}
20 W 100 V DC - 1 KHz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
400 mA 4.0 Ohm Fig.8-B
{ RF & RF+DC
with BNC(f) }

Fig.8-S
{ RF & RF+DC
with SMA(f) }

Fig.8-N
{ RF & RF+DC
with N(f) }



Low  Loss

BT-2020-B
with  BNC(f)

BT-2020-S
with SMA(f)

BT-2020-N
with N(f)

Response Curves in PDF
20 KHz -
2000 MHz
0.5 dB 1.35 : 1 30 dB 10 W 100 V DC - 1 KHz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
60 mA 0.6 Ohm
High Current

BT-H007-B
with  BNC(f)

BT-H007-S
with SMA(f)

BT-H007-N
with N(f)

Response Curves in PDF
20 KHz -
2500 MHz
1.2 dB 1.4 : 1
{1.8:1 Over
20-40 KHz}
40 dB 20 W 100 V DC - 300 Hz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
1 A 1.2 Ohm Fig.10-B
{ RF & RF+DC
with BNC(f) }

Fig.10-S
{ RF & RF+DC
with SMA(f) }

Fig.10-N
{ RF & RF+DC
with N(f) }
BT-1150-B
with  BNC(f)

BT-1150-LS
with  SMA(f)
BT-1150-N
with  N(f)
BT-1150-SB
With SMA(f) ;
BNC(f) for DC



Response Curves in PDF
150 KHz -
1000 MHz
0.5 dB 1.25 : 1 40 dB 10 W 50 V DC - 3 KHz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
600 mA 1.0 Ohm Fig.8-B
{ RF & RF+DC
with BNC(f) }





Fig.1
{ RF & RF+DC
with SMA(f) }





Fig.8-N
{ RF & RF+DC
with N(f) }





Fig.8-SB
{ RF & RF+DC
with SMA(f) }

BNC(f)} for DC



BT-H060-B
with  BNC(f)

BT-H060-LS
with S MA(f)
BT-H060-N
with  N(f)
BT-H060-SB
With SMA(f) ;
BNC(f) for DC


Response Curves in PDF
200KHz
- 60 MHz
0.15 dB 1.20 : 1 40 dB 50 W 50 V DC - 3 KHz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
850 mA 1.0 Ohm
BT-H150-B
with  BNC(f)

BT-H150-LS
with  SMA(f)
BT-H150-N
with  N(f)
BT-H150-SB
With SMA(f) ;
BNC(f) for DC


Response Curves in PDF
1MHz
- 150 MHz
0.2 dB 1.3 : 1 40 dB 50 W 50 V DC - 5 KHz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
850 mA 0.7 Ohm
BT-1010-B
with  BNC(f)

BT-1010-LS
with  SMA(f)
BT-1010-N
with  N(f)
BT-1010-SB
With SMA(f) ;
BNC(f) for DC


Response Curves in PDF
10 MHz -
 1000 MHz
0.5 dB 1.3 : 1 45 dB 50 W 100 V DC - 100 KHz
{Std. unit has Solder-Pin
for Bias <> See Spec. sheet
for Bias with BNC(f), or
other Connector Options}
850 mA 0.4 Ohm
High Current


BT-H250-LN
with  N(f)


Response Curves in PDF
250 MHz
- 2.5 GHz
0.3 dB 1.25 : 1 50 dB 150 W 150 V DC - 40 MHz
{Solder-Pin for Bias}
5 A 0.1 Ohm Fig.5
{ RF & RF+DC
with N(f) }
BT-1250-MS

Response Curves in PDF
50 - 1250 MHz 0.2 dB 1.25 : 1 30 dB 50 W 100 V DC - 5 MHz
{Solder-Pin for Bias}
750 mA 0.2 Ohm Fig.2
{ RF & RF+DC
with SMA(f) }


SMA(M) Option
Available; see
Spec. Sheet

High Current


BT-1500-MS

Response Curves in PDF
300 - 1500 MHz 0.2 dB 1.25 : 1 40 dB 40 W 100 V DC - 3 MHz
{Solder-Pin for Bias}
2.5 A 0.1 Ohm
BT-3020-MS

Response Curves in PDF
20 - 3000 MHz 0.4 dB 1.20 : 1 30 dB 10 W 50 V DC - 4 MHz
{Solder-Pin for Bias}
300 mA 0.4 Ohm
BT-302H-MS

Response Curves in PDF
20 - 3000 MHz 0.5 dB 1.20 : 1 30 dB 10 W 50 V DC - 4 MHz
{Solder-Pin for Bias}
600 mA 0.3 Ohm
BT-5030-MS

Response Curves in PDF
30 - 5000 MHz 0.4 dB 1.20 : 1 35 dB
{ 25dB Over
30-50MHz }
10 W 50 V DC - 5 MHz
{Solder-Pin for Bias}
300 mA 1.5 Ohm
BT-S000-HS

Response Curves in PDF
2 - 18 GHz 0.7 dB 1.50 : 1 40 dB 10 W 50 V DC - 20 MHz
{Solder-Pin for Bias}
500 mA 0.5 Ohm Fig.3
{ RF & RF+DC
with SMA(f) }


SMA(M) Option
Available; see
Spec. Sheet
High Current

BT-N000-HS

Response Curves in PDF
6 - 18 GHz 0.5 dB 1.50 : 1 30 dB 25 W 100 V DC - 200 MHz
{Solder-Pin for Bias}
1 A 0.25 Ohm
BT-T000-HS

Response Curves in PDF
1 - 18 GHz 0.7 dB 1.50 : 1 25 dB 10 W 50 V DC - 8 MHz
{Solder-Pin for Bias}
350 mA 0.5 Ohm
BT-U000-HS

Response Curves in PDF
0.5 - 18 GHz 0.9 dB 1.50 : 1 40 dB 10 W 50 V DC - 10 MHz
{Solder-Pin for Bias}
350 mA 0.7 Ohm
BT-G200-HS

Response Curves in PDF
0.2 - 20 GHz 0.8 dB 1.45 : 1 30 dB 10 W 50 V DC - 10 MHz
{Solder-Pin for Bias}
175 mA 1.0 Ohm
BT-G300-HS

Response Curves in PDF
0.3 - 20 GHz 0.8 dB 1.45 : 1 30 dB 10 W 50 V DC - 10 MHz
{Solder-Pin for Bias}
300 mA 0.5 Ohm
High Current


BT-P000-HS

Response Curves in PDF
8 - 20 GHz 0.5 dB 1.50 : 1 25 dB 25 W 100 V DC - 200 MHz
{Solder-Pin for Bias}
1 A 0.25 Ohm
High Current


BT-PN00-HS

Response Curves in PDF
3.5 - 20 GHz 0.5 dB 1.45 : 1 30 dB 25 W 100 V DC - 80 MHz
{Solder-Pin for Bias}
1 A 0.25 Ohm

BT-G2SF-HS

Response Curves in PDF
0.2 - 20 GHz 0.8 dB 1.45 : 1 30 dB 10 W 50 V DC - 10 MHz
{SMA(f) for Bias}
175 mA 1.2 Ohm Fig.9
{ All SMA(f) }
BT-T0SF-HS

Response Curves in PDF
1 - 18 GHz 0.7 dB 1.5 : 1 30 dB 10 W 50 V DC - 8 MHz
{SMA(f) for Bias}
350 mA 0.5 Ohm
High Current


BT-PNSF-HS

Response Curves in PDF
3.5 - 20 GHz 0.6 dB 1.6 : 1 25 dB 25 W 100 V DC - 80 MHz
{SMA(f) for Bias}
1 A 0.25 Ohm
High Current


BT-2500-MN

with  N(f)

Response Curves in PDF
0.3 - 2.5 GHz 0.2 dB 1.25 : 1 30 dB
{20 dB Over
300-500 MHz}
40 W 100 V DC - 100 MHz
{BNC(f) for Bias}
3 A 0.1 Ohm Fig.4
{ RF & RF+DC
with N(f) }



All Models:
 Impedance: 50 Ohm (Nominal)


Environmental Ratings:
   Temperature:
- Operating -55 degC to +95 degC
- Storage -60 degC to +110 degC
   Humidity: Mil-STD-202F, Method 103B Condition B
   Shock: Mil-STD-202F, Method 213B Condition B
   Vibration: Mil-STD-202F, Method 204D Condition B
   Altitude: Mil-STD-202F, Method 105C Condition B
   Temp. Cycle: Mil-STD-202F, Method 107D Condition B
