| Pin Diode SP3T Switches | |
Frequencies from 10MHz to 20GHz
Absorptive or Reflective Type All with
High Speed TTL Driver Reverse
Voltage Protection Available with variety of options
ECCN: EAR99 |
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|
RF Circuit / Reflective SP3T |
RF Circuit / Absorptive SP3T |
|
|
|
|
|
|
|
Common Specifications | |
|
|
Available Options | |
|
> Specifications are subject to change
without notice > for Specifications-Sheet in PDF, click on the product model number > to see the actual response curves, click on "  " (subject to availability) |
Broadband SP3T Switches (Reflective
/ Absorptive)
Frequencies from 10MHz to 15GHz
Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
Isolation (dB) Min |
VSWR Max |
Rise/Fall
Time Max |
On/Off Time Max |
Power Handling, Max |
Supply Voltage |
Outline Drawing |
|
| Cw / Avg | Peak | |||||||||
| 10 MHz - 3 GHz | ||||||||||
|
SR-3000-3S (Reflective) |
0.01 - 3 | 1.8 | 55 | 1.5:1 | 200 ns | 300 ns |
+27dbm (+23dBm Max Below 100MHz) |
5W (5μS, PW) |
+5(-/+0.25)V / 60mA -12(-/+0.5)V / 70mA |
Fig.1 |
|
SR-3010-3S (Absorptive) |
0.01 - 3 | 1.8 | 60 | 1.5:1 | 200 ns | 300 ns |
+27dbm (+23dBm Max Below 100MHz) |
5W (5μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 70mA |
|
| 20 MHz - 6 GHz | ||||||||||
|
SR-B300-3S (Reflective) |
0.02 - 6 | 2.6 | 70 |
1.5:1 (1.7:1 Over 20-30MHz) |
200 ns | 300 ns |
+27dbm (+23dBm Max Below 100MHz) |
5W (5μS, PW) |
+5(-/+0.25)V / 60mA -12(-/+0.5)V / 70mA |
Fig.1 |
|
SR-B310-3S (Absorptive) |
0.02 - 6 | 2.6 | 75 |
1.5:1 (1.7:1 Over 20-30MHz) |
200 ns | 300 ns |
+27dbm (+23dBm Max Below 100MHz) |
5W (5μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 70mA |
|
| 0.2 - 4 GHz | ||||||||||
|
SR-DA3W-3S (Reflective) |
0.2 - 4 | 1.8 | 70 | 1.5:1 | 250 ns | 300 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 60mA -12(-/+0.5)V / 60mA |
Fig.1 |
|
SR-DA1W-3S (Absorptive) |
0.2 - 4 | 1.8 | 75 | 1.5:1 | 250 ns | 300 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
|
2 - 14 GHz (Fast Switching) |
||||||||||
|
SR-L440-3S (Reflective) |
2 - 12.4 | 2.2 | 55 | 1.5:1 | 10 ns | 40 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 60mA -12(-/+0.5)V / 60mA |
Fig.1 |
| 12.4 - 14 | 55 | |||||||||
|
SR-L410-3S (Absorptive) |
2 - 12.4 | 2.2 | 60 | 1.5:1 | 10 ns | 40 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 12.4 - 14 | 55 | |||||||||
|
0.4
- 14 GHz (Fast Switching) |
||||||||||
|
SR-J440-3S (Reflective) |
0.4 - 12.4 | 2.4 | 55 | 1.6:1 | 25 ns | 60 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 60mA -12(-/+0.5)V / 60mA |
Fig.1 |
| 12.4 - 14 | 50 | |||||||||
|
SR-J410-3S (Absorptive) |
0.4 - 12.4 | 2.4 | 60 | 1.6:1 | 25 ns | 60 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 12.4 - 14 | 55 | |||||||||
| 1 - 15 GHz | ||||||||||
 SR-K03W-3S (Reflective) |
1 - 6 | 2.7 | 70 | 1.7:1 | 250 ns | 300 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 50mA -12(-/+0.5)V / 50mA |
Fig.1 |
| 6 - 12.4 | 60 | |||||||||
| 12.4 - 15 | 55 | |||||||||
|
SR-K01W-3S (Absorptive) |
1 - 6 | 2.7 | 75 | 1.7:1 | 250 ns | 300 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 50mA |
|
| 6 - 12.4 | 65 | |||||||||
| 12.4 - 15 | 60 | |||||||||
Broadband SP3T Switches (Reflective
/ Absorptive)
Frequencies from 100MHz to 20GHz
|
Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
Isolation (dB) Min |
VSWR Max |
Rise/Fall
Time Max |
On/Off Time Max |
Power Handling, Max |
Supply Voltage |
Outline Drawing |
|
| Cw / Avg | Peak | |||||||||
| 2 - 18 GHz | ||||||||||
|
SR-S200-3S (Reflective) |
2 - 10 | 2.2 | 60 | 1.7:1 | 20 ns | 60 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 90mA -12(-/+0.5)V / 60mA |
Fig.1 |
| 10 - 18 | 50 | |||||||||
|
SR-S270-3S (Absorptive) |
2 - 10 | 2.6 | 65 | 1.7:1 | 20 ns | 60 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 60mA |
|
| 10 - 18 | 55 | |||||||||
|
SR-S01W-3S (Absorptive) |
2 - 6 | 3.0 | 90 | 1.8:1 | 150 ns | 250 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 6 - 12 | 80 | |||||||||
| 12 - 18 | 70 | |||||||||
|
SR-S510-3S (Absorptive) Fast Switching |
2 - 9 | 2.8 | 70 | 1.8:1 | 10 ns | 40 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 9 - 18 | 60 | |||||||||
|
SR-S000-3S (Reflective) |
2 - 10 | 2.4 | 80 | 1.8:1 | 25 ns | 60 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 18 | 70 | |||||||||
|
SR-S070-3S (Absorptive) |
2 - 10 | 3.6 | 85 | 1.9:1 | 20 ns | 60 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 18 | 75 | |||||||||
| 0.5 - 18 GHz | ||||||||||
|
SR-U200-3S (Reflective) |
0.5 - 10 | 2.4 | 60 | 1.8:1 | 20 ns | 60 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 90mA -12(-/+0.5)V / 60mA |
Fig.1 |
| 10 - 18 | 50 | |||||||||
|

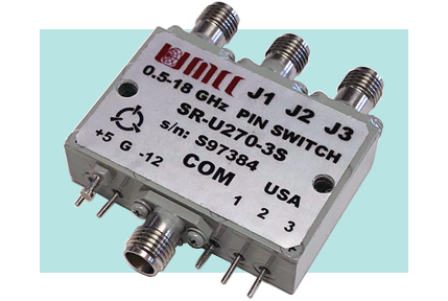

SR-U270-3S (Absorptive) |
0.5 - 10 | 2.8 | 65 | 1.8:1 | 20 ns | 60 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 60mA |
|
| 10 - 18 | 55 | |||||||||
|
SR-U01W-3S (Absorptive) |
0.5 - 6 | 3.0 | 90 | 1.8:1 | 150 ns | 250 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 6 - 12 | 80 | |||||||||
| 12 - 18 | 70 | |||||||||
|
SR-U510-3S (Absorptive) Fast Switching |
0.5 - 9 | 3.2 | 70 | 1.8:1 | 20 ns | 50 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 9 - 18 | 60 | |||||||||
|
SR-U000-3S (Reflective) |
0.5 - 10 | 2.6 | 80 | 1.9:1 | 25 ns | 60 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 18 | 70 | |||||||||
|
SR-U070-3S (Absorptive) |
0.5 - 10 | 3.8 | 85 | 1.9:1 | 25 ns | 60 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 18 | 75 | |||||||||
| 0.1 - 18 GHz | ||||||||||
|
SR-V200-3S (Reflective) |
0.1 - 10 | 2.2 | 65 | 1.8:1 | 50 ns | 150 ns |
+30dbm (+27dBm Max Below 300MHz) |
5W (1μS, PW) |
+5(-/+0.25)V / 90mA -12(-/+0.5)V / 60mA |
Fig.1 |
| 10 - 18 | 55 | |||||||||
|
SR-V010-3S (Absorptive) |
0.1 - 6 | 3.0 | 90 | 1.8:1 | 150 ns | 250 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 130mA -12(-/+0.5)V / 60mA |
|
| 6 - 12 | 80 | |||||||||
| 12 - 18 | 70 | |||||||||
|
SR-V000-3S (Reflective) |
0.1 - 18 | 2.6 | 70 | 1.9:1 | 50 ns | 150 ns |
+30dbm (+27dBm Max Below 300MHz) |
5W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
|
SR-V070-3S (Absorptive) |
0.1 - 18 | 3.8 | 75 | 1.9:1 | 50 ns | 150 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 2 - 20 GHz | ||||||||||
|
SR-P200-3S (Reflective) |
2 - 14 | 2.4 | 60 | 1.8:1 | 20 ns | 60 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 90mA -12(-/+0.5)V / 60mA |
Fig.1 |
| 14 - 20 | 47 | |||||||||
|
SR-P270-3S (Absorptive) |
2 - 14 | 3.2 | 65 | 1.8:1 | 20 ns | 60 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 14 - 20 | 50 | |||||||||
|
SR-P01W-3S (Absorptive) |
2 - 6 | 3.2 | 90 | 1.8:1 | 150 ns | 250 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 6 - 12 | 80 | |||||||||
| 12 - 20 | 70 | |||||||||
|
SR-P510-3S (Absorptive) Fast Switching |
2 - 9 | 3.0 | 70 | 1.9:1 | 10 ns | 40 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 60mA |
|
| 9 - 18 | 60 | |||||||||
| 18 - 20 | 55 | |||||||||
|
SR-P000-3S (Reflective) |
2 - 10 | 2.5 | 80 | 1.8:1 | 25 ns | 60 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 20 | 65 | |||||||||
|
SR-P070-3S (Absorptive) |
2 - 10 | 3.8 | 85 | 1.9:1 | 20 ns | 60 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 20 | 70 | |||||||||
| 0.3 - 20 GHz | ||||||||||
|
SR-G200-3S (Reflective) |
0.3 - 10 | 2.5 | 65 | 1.8:1 | 50 ns | 150 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 90mA -12(-/+0.5)V / 60mA |
Fig.1 |
| 10 - 20 | 50 | |||||||||
|
SR-G01W-3S (Absorptive) |
0.3 - 12 | 3.2 | 80 | 1.8:1 | 150 ns | 250 ns | +27dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 130mA -12(-/+0.5)V / 60mA |
|
| 12 - 20 | 70 | |||||||||
|
SR-G000-3S (Reflective) |
0.3 - 10 | 2.9 | 80 | 1.8:1 | 50 ns | 150 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 20 | 65 | |||||||||
|
SR-G070-3S (Absorptive) |
0.3 - 10 | 3.9 | 85 | 1.9:1 | 50 ns | 150 ns | +24dbm |
5W (1μS, PW) |
+5(-/+0.25)V / 120mA -12(-/+0.5)V / 60mA |
|
| 10 - 20 | 70 | |||||||||
| All Models: | ||
Impedance: |
50 Ω Nominal | |
|
Control Input Characteristic: |
TTL, One Unit Load (1.6mA Sink / 40μA Source) | |
|
Control Logic: |
3-Controls /
Floating-High Logic "0" for path "ON" ( 0 to +0.8V) Logic "1" for path "OFF" (+2.2 to +5.0V) |
|
|
Connectors: |
||
| - RF Input / Output | SMA (female) | |
| - Supply | Solder Pins | |
| - Control | Solder Pins | |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
Available Options: 1) units with combination of the following options may require some specification tradeoffs from the standard 2) Some options may not be available on all models |
|||
| Supply Voltages |
Video Suppression Filters |
||
| A1) +5 ( -/+ 0.25 )V / -5 ( -/+ 0.25 )V { Recommended for Low Power Consumption <> Additional Switching Delay (On/Off Time) } | G1) VF @ Common Port <> 0.25dB additional Loss | ||
| A2) +5 ( -/+ 0.25 )V / -15 ( -/+ 0.5 )V | G2) VF @ J1 - J3 Ports <> 0.25dB additional Loss | ||
| A3) +12 ( -/+ 0.5 )V / -12 ( -/+ 0.5 )V | G3) VF @ All Ports <> 0.5dB additional Loss | ||
| A4) +15 ( -/+ 0.5 ) V / -15 ( -/+ 0.5 )V | |||
|
Other Possible Options (Consult Factory) |
|||
| RF Connectors |
- Higher Isolation | ||
| B1) J1 - J3 Ports with SMA (M) | - Switch Without Driver | ||
| B2) All SMA (M) | - Higher Power | ||
| B3) COM Port with SMA (M) | - Etc. | ||
| Control Function |
|||
| F1) Inverted Logic, ("1" = Path "ON") | |||
| F2) Binary Coded Logic, (2 Controls) | |||
| > Outline
for Switch with Option "F2"
Fig.
3
|
|||
|
|
|
|
|
