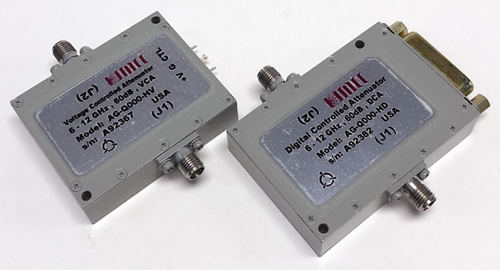

Extended Band Variable Attenuators
Frequencies from 160MHz to 9GHz
Linearized Voltage or Digital Controlled
Current or Voltage Controlled (Driver Less)
Excellent Linearity and Flatness
Temperature Compensated
 Available with variety of options
ECCN: EAR99

Sales/Technical Contact Email:  Sales@UMCC111.com

UMCC offers this  selection of pin-diode variable attenuators in  bands  from 160MHz to 9GHz.  Attenuators are equipped with a linearizer driver circuit for attenuation control setting.  Control signal is via a voltage or a digital word.  Attenuators are also available without a driver where control would be via a forward current.

RF Circuit

Voltage Control Driver

Digital Control Driver

  Common Specifications

  Available Options


> Specifications are subject to change without notice
> for Specifications-Sheet in PDF, click on  the product model number
> to see the actual response curves, click on  ""  (subject to availability)


Voltage Controlled Attenuator (VCA) / "AE-XXXX-40V" Models
Digital Controlled Attenuator (DCA) / "AE-XXXX-40D" Models
Current Controlled Attenuator (CCA) / "AE-XXXX-40C" Models

Specifications for Standard Models (40 dB Dynamic Range Maximum)

Model No.
 Operating
Freq. Band
Phase-Invariant
Freq. Region (2)		 Insertion
Loss
(dB) Max		 VSWR
Max		 Power Rating
Operating (CW/PK)
Survival (CW/AVG)		 Settling
Time (1)		 Attenuation Flatness (dB)
Peak-Peak		 Outline
Dwg.
10dB 20dB 30dB

40dB
AE-A000-40V 160 - 500
(MHz)
Response Plots in PDF		 260 - 500
(MHz)		 1.8 1.6:1 +10dbm (O)
+30dbm (S)		 1μs
(10μs<PW<0.1s)		 0.9 1.3 1.5 1.5 -40V
AE-A000-40D -40D
AE-A000-40C -40C
AE-AB00-40V 250 - 770
(MHz)
Response Plots in PDF		 370 - 700
(MHz)		 1.7 1.6:1 +10dbm (O)
+30dbm (S)		 1μs
(10μs<PW<0.1s)		 0.6 1.0 1.4 1.6 -40V
AE-AB00-40D -40D
AE-AB00-40C -40C
AE-B000-40V 350 - 1100
(MHz)
Response Plots in PDF		 540 - 890
(MHz)		 1.7 1.5:1 +12dbm (O)
+30dbm (S)		 750 ns
(10μs<PW<0.1s)		 0.6 1.0 1.4 1.6 -40V
AE-B000-40D -40D
AE-B000-40C -40C
AE-C000-40V 0.75 - 2.25
(GHz)
Response Plots in PDF		 1.12 - 1.65
(GHz)		 1.7 1.4:1 +14dbm (O)
+30dbm (S)		 500 ns
(5μs<PW<0.1s)		 0.4 0.7 1.2 1.5 -40V
AE-C000-40D -40D
AE-C000-40C -40C
AE-CD00-40V 1.1 - 3.3
(GHz)
Response Plots in PDF		 1.7 - 2.5
(GHz)		 1.7 1.6:1 +17dbm (O)
+30dbm (S)		 500 ns
(5μs<PW<0.1s)		 0.5 0.9 1.2 1.5 -40V
AE-CD00-40D -40D
AE-CD00-40C -40C
AE-D000-40V 1.5 - 4.3
(GHz)
Response Plots in PDF		 1.95 - 3.8
(GHz)		 1.8 1.7:1 +20dbm (O)
+30dbm (S)		 500 ns
(5μs<PW<0.1s)		 0.5 0.9 1.2 1.5 -40V
AE-D000-40D -40D
AE-D000-40C -40C
AE-H000-40V 2.25 - 6.75
(GHz)
Response Plots in PDF		 3.05 - 5.0
(GHz)		 2.0 1.5:1 +20dbm (O)
+30dbm (S)		 500 ns
(5μs<PW<0.1s)		 1.0 1.2 1.5 1.9 -40V
AE-H000-40D -40D
AE-H000-40C -40C
AE-E000-40V 3 - 9
(GHz)
Response Plots in PDF		 4.95 - 5.2
(GHz)		 2.4 1.7:1 +20dbm (O)
+30dbm (S)		 500 ns
(5μs<PW<0.1s)		 1.1 1.3 1.9 2.8 -40V
AE-E000-40D -40D
AE-E000-40C -40C

1) "settling time" is defined as the time attenuation level transits from one attenuation level to within -/+1dB of another attenuation level
2) "Phase Invariant Freq. Region"  is where signal phase shift over entire attenuation range is less than -/+10 Degrees (normally highest at band edges)



All Standard Models:
 Impedance: 50 Ω Nominal

 Mean Attenuation Range: 40 dB Nominal

 Control Characteristics:
- Voltage Controlled Units (AE-XXXX-40V)  0V  to +4V, Slope = 10dB/Volt, Impedance= 2.5K Ohms
(0V = 0dB Attenuation (Reference))
- Digital Controlled Units (AE-XXXX-40D)
 		8 Bit Positive Binary TTL
( LSB=0.25dB, MSB=32dB), Impedance= 5~10K Ohms
- Current Controlled Units (AE-XXXX-40C) 0 - 10 mA Forward Current (approx.)

 Transfer Function Accuracy (Mean Attenuation): 0 - 0.8 dB   -/+ 50% Max
  > 0.8 - 10 dB  -/+ 0.40 dB Max
> 10 - 30 dB -/+ 0.50 dB Max
> 30 - 40 dB -/+ 0.90 dB Max

 Power Supplies ( AE-XXXX-40V & AE-XXXX-40D): +12 to +15 VDC  @ 60mA Max

(Supply is internally regulated)



 Connectors:
- RF Input / Output SMA (female), Removable
- Supply and Control (AE-XXXX-40V (-40C)) Solder Pins
- Supply and Control (AE-XXXX-40D) 15-Pin D-Type Subminiature Male

 Temperature Coefficient: -/+ 0.025dB / degC  (Over -20 degC to +75 degC)

Environmental Ratings:
 Temperature:
- Operating -40 degC to +85 degC
- Storage -50 degC to +100 degC
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) Units with options listed here may be subject to  some specification tradeoffs from the standard, consult factory
 2) Some options may not be available on all models, consult factory

 RF Connectors  Control Function Resolution (AE-XXXX-40D series <> "40dB Range" )
   B1   [ J1 SMA (male) ]   E1  [ LSB = 1/8 dB <> 9-Bits <> "fractional steps" ]
  B2   [ All SMA (male) ]   R1  [ LSB = 0.1 dB <> 9-Bits <> "decimal steps" ]
  E2  [ LSB = 1/16 dB <> 10-Bits <> "fractional steps" ]
 Control Connector (AE-XXXX-40V series)   R2  [ LSB = 0.05 dB <> 10-Bits <> "decimal steps" ]
C1   [ SMC (Jack), 50 Ω ] E3  [ LSB = 1/32 dB <> 11-Bits <> "fractional steps"]
  E4  [ LSB = 1/64 dB <> 12-Bits <> "fractional steps"]
C2   [ SMB (Jack), 50 Ω ]
 Transfer Functions
C3   [ SMA (female) ]   F1  [ Slope = 5dB/Volt ] / (AE-XXXX-40V series)
    F3  [ Reverse Control Voltage (0V = Max Attenuation)] / (AE-XXXX-40V series)
    F3  [ Inverse Logic ("00.....00" = Max Attenuation)] / (AE-XXXX-40D series)
