| DPDT (Transfer) Switches | |
Frequencies from 10MHz to 20GHz Available with variety of options
|
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|
|
||||
 |
Common Specifications |
RF Circuit / DPDT |
 |
|
|
|
Available Options | |||
|
> Specifications are subject to change
without notice > for Specifications-Sheet in PDF, click on the product model number > to see the actual response curves, click on "  " (subject to availability) |
||||
Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
Isolation (dB) Min |
VSWR Max |
Rise/Fall
Time Max |
On/Off Time Max |
Power Handling, Max |
Supply Voltage |
Outline Drawing |
|
| Cw / Avg | Peak | |||||||||
| 10 MHz - 3 GHz | ||||||||||
|
SR-3000-TS
|
0.01 - 1 | 1.6 | 70 | 1.4:1 | 300 ns | 600 ns | +30dbm |
5W (5μS, PW) |
+5(-/+0.25)V / 50mA -12(-/+0.5)V / 120mA |
Fig.1 |
| 1 - 3 | 2.2 | 65 | ||||||||
| 20 MHz - 6 GHz | ||||||||||
 SR-B000-TS |
0.02 - 2 | 2.0 | 70 |
1.5:1 (1.7:1 Over 20-30MHz) |
150 ns | 200 ns | +30dbm |
5W (5μS, PW) |
+5(-/+0.25)V / 50mA -12(-/+0.5)V / 120mA |
Fig.1 |
| 2 - 6 | 60 | |||||||||
| 2 - 18 GHz | ||||||||||
|
SR-S000-TS
|
2 - 15 | 2.3 | 70 | 1.8:1 | 30 ns | 70 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 100mA |
Fig.2 |
| 15 - 18 | 2.8 | 65 | ||||||||
| 0.5 - 18 GHz | ||||||||||
|

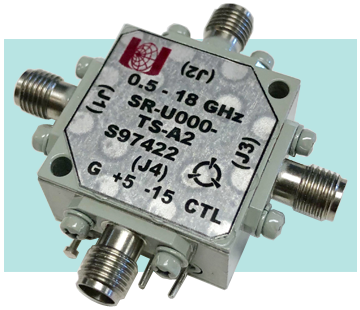

SR-U000-TS |
0.5 - 15 | 2.9 | 70 | 1.8:1 | 30 ns | 75 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 100mA |
Fig.2 |
| 15 - 18 | 65 | |||||||||
| 0.2 - 18 GHz | ||||||||||
|

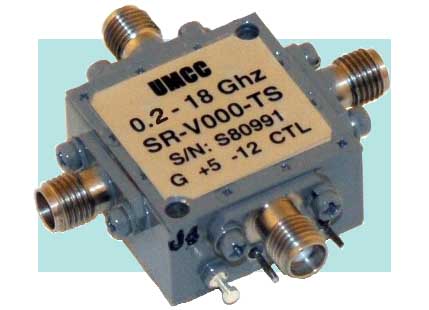

SR-V000-TS |
0.2 - 10 | 2.2 | 80 | 1.9:1 | 35 ns | 120 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 100mA |
Fig.2 |
| 10 - 18 | 3.0 | 70 | ||||||||
| 1.5 - 19 GHz | ||||||||||
|
SR-SE00-TS |
1.5 - 10 | 2.5 | 80 | 1.9:1 | 60 ns | 120 ns | +31dbm |
15W (1μS, PW) |
+5(-/+0.25)V / 90mA -12(-/+0.5)V / 110mA |
Fig.2 |
| 10 - 19 | 3.5 | 70 | ||||||||
| 0.3 - 20 GHz | ||||||||||
|
SR-G000-TS |
0.3 - 10 | 2.2 | 80 | 1.9:1 | 50 ns | 120 ns | +30dbm |
10W (1μS, PW) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 100mA |
Fig.2 |
| 10 - 20 | 3.0 | 65 | ||||||||
| All Models: | ||
 Impedance: |
50 Ω Nominal | |
| Control Input Characteristic: |
TTL, One Unit Load (1.6mA Sink / 40μA Source), Floating-High | |
| Control Logic: |
Logic "0" ( 0 to +0.8V) for RF Path J1 to J2 & J3 to J4 | |
| Logic "1" (+2.2 to +5.0V) for RF Path J1 to J4 & J3 to J2 | ||
| Connectors: |
||
| - RF Input / Output | SMA (female) | |
| - Supply | Solder Pins | |
| - Control | Solder Pins | |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
Available Options: 1) units with combination of the following options may require some specification tradeoffs from the standard 2) Some options may not be available on all models |
|||
| Supply Voltages |
Control Impedance |
||
| A1)* +5 ( -/+ 0.25 )V / -5 ( -/+ 0.25 )V | D1) 50 Ω, Internally Terminated | ||
| A2) +5 ( -/+ 0.25 )V / -15 ( -/+ 0.5 )V | |||
| A3) +12 ( -/+ 0.5 )V / -12 ( -/+ 0.5 )V | Control Function |
||
| A4) +15 ( -/+ 0.5 ) V / -15 ( -/+ 0.5 )V | F1) Inverted Logic | ||
| *Additional Switching Delay (On/Off Time) | |||
| RF Connectors |
Video Suppression Filters
* |
||
| B1) J1 & J3 Ports with SMA(M) | G1) VF @ J1 & J3 Ports <> 0.25 dB additional Loss | ||
| B2) All SMA(M) | G2) VF @ J2 & J4 Ports <> 0.25 dB additional Loss | ||
| B3) J2 & J4 Ports with SMA(M) | G3) VF @ All Ports <> 0.5 dB additional Loss | ||
| * Voltage spikes during switching transition can reach as high as few volts with bandwidths reaching up to near 1GHz. These Spikes/Video do appear on the switch RF port; this may effect certain systems that are sensitive to these undesirable voltage spikes. UMCC offers internal 3-section high-pass filtering (G options) to reduce these voltage spikes to a reasonable level of 50~400 mV Pk-Pk depending on the switch types. For more effective transient voltage reduction, an external higher order filtering is highly recommended. UMCC has developed series of miniature wideband filters for this very purpose. To see the available selection, please visit the following page: Filter-HighPass | |||
|
|
|
|
|
