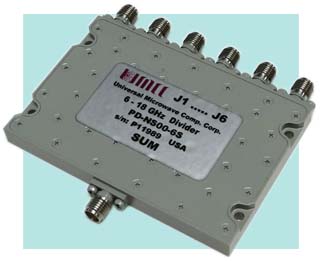

6-Way Dividers
Frequencies from 10KHz to 18.5GHz
Narrow Bands to Multi-Octave Bands
Lumped Element, Microstrip, or Stripline Constructions
Excellent Phase and Amplitude Tracking
ECCN: EAR99
- Specifications are subject to change without notice
- Click on  the product model number  for Specifications-Sheet in PDF
- Click on  "
" to see the actual response curves (subject to availability)

 Sales/Technical Contact Email:  Sales@UMCC111.com




Low Frequency Wide Band 6-Way Dividers
10 KHz  - 800 MHz

Model
Number
Freq.
Range
(MHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
(deg) Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
SUM OUTS >> 2:1 << 2:1
10 KHz - 10 MHz
PS-0010-6S
with SMA(f)
PS-0010-6B
with BNC(f)
PS-0010-6N

with N(f)
Response Curves in PDF
0.01 - 0.02 0.6 25 1.60 1.30 -/+0.2 -/+1deg 3 W 10 W Fig.21
0.02 - 10 1.30
30 - 800 MHz
PS-1000-6S
with SMA(f)
PS-1000-6B
with BNC(f)
PS-1000-6N
with N(f)
Response Curves in PDF
30 - 500 1.3 25 1.60 1.50 -/+0.2 -/+3deg 2 W 8 W Fig.22
500 - 800 1.5 -/+0.5 -/+4deg

1) Loss due to division is 7.78dB    2) Power at SUM port



Narrow-Band 6-Way Dividers
1.9 - 18 GHz

Model
Number
Freq.
Range
(GHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
(deg) Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
SUM OUTS >> 2:1 << 2:1
PS-D000-6S
Response Curves in PDF
1.9 - 4.5 0.7 20 1.5 1.3 -/+0.2 -/+4deg 2 W 20 W Fig.5
PD-ES00-6S
Slimline Pkg.
4 - 8 0.7 20 1.45 1.45 -/+0.2 -/+4deg 1 W 10 W Fig.2
PD-F000-6S
Response Curves in PDF
8 - 12.4 0.8 18 1.55 1.40 -/+0.2 -/+4deg 1 W 10 W Fig.1
PD-G000-6S
Response Curves in PDF
12.4 - 18 2.0 16 1.6 1.45 -/+0.4 -/+5deg 1 W 10 W Fig.1

1) Loss due to division is 7.78dB    2) Power at SUM port



Wide-Band 6-Way Dividers
1.9 - 18 GHz
Model
Number
Freq.
Range
(GHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
(deg) Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
SUM OUTS >> 2:1 << 2:1
PD-L000-6S
Response Curves in PDF
1.9 - 8.5 1.5 18 1.55 1.45 -/+0.3 -/+4deg 1 W 10 W Fig.3
PD-NS00-6S
Slimline Pkg.
Response Curves in PDF
6 - 18 2.5 16 1.70 1.55 -/+0.4 -/+5deg 1 W 10 W Fig.6

1) Loss due to division is 7.78dB    2) Power at SUM port



Multi-Octave-Band 6-Way Dividers
1.5 - 18.5 GHz
Model
Number
Freq.
Range
(GHz)
Insertion
Loss
(1)
(dB) Max
Isolation
(dB) Min
VSWR
Max
Amplitude
Balance
(dB) Max
Phase
Balance
(deg) Max
Power (2) cw/avg
Load VSWR
Outline
Drawing
SUM OUTS >> 2:1 << 2:1
PD-S000-6S
Response Curves in PDF
1.5 - 18.5 3.0 16 1.80 1.55 -/+0.5 -/+10deg 1 W 10 W Fig.3

1) Loss due to division is 7.78dB    2) Power at SUM port



All Models:
 Impedance: 50 Ω Nominal
 Connectors: SMA(f) , ("unless otherwise specifies")

Environmental Ratings:
 Temperature:
- Operating -55 degC to +95 degC
- Storage -60 degC to +110 degC
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B
