PM SP5T Switches

UMCC

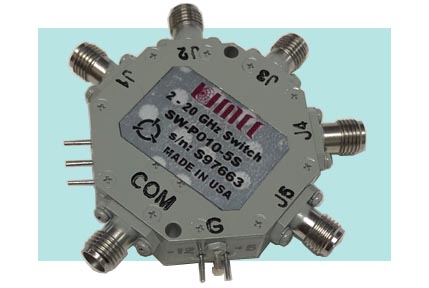

SP5T Switches / Phase Matched
Frequencies from 20MHz to 20GHz
All with High Speed TTL Driver
Available with variety of options
Small Compact Packages
ECCN: EAR99

Sales/Technical Contact Email:  Sales@UMCC111.com



RF Circuit / Reflective SP5T



RF Circuit / Absorptive SP5T





  Common Specifications

  Available Options
    > Specifications are subject to change without notice
> for Specifications-Sheet in PDF, click on  the product model number

> to see the actual response curves, click on  ""  (subject to availability)

Broadband SP5T Switches (Reflective / Absorptive)
Frequencies from 20MHz to 15GHz

Model No.
Frequency
(GHz)
Insertion
Loss
(dB) Max
Isolation
(dB) Min
VSWR
Max
Rise/Fall
Time
Max
On/Off
Time
Max
Power
Handling, Max
Supply
Voltage
Outline
Drawing
Cw / Avg Peak
20 MHz - 6 GHz
SW-B300-5S
(Reflective)
0.02 - 6 2.7 70 1.5:1
(1.7:1 Over
20-30MHz)
200 ns 300 ns +27dbm
(+23dBm Max
Below 100MHz)
5W
(5μS, PW)
+5(-/+0.25)V / 70mA
-12(-/+0.5)V / 90mA
Fig.1
SW-B310-5S
(Absorptive)
Response Curves in PDF
0.02 - 6 2.7 75 1.5:1
(1.7:1 Over
20-30MHz)
200 ns 300 ns +27dbm
(+23dBm Max
Below 100MHz)
5W
(5μS, PW)
+5(-/+0.25)V / 170mA
-12(-/+0.5)V / 90mA
0.2 - 4 GHz
SW-DA3W-5S
(Reflective)
0.2 - 4 1.8 70 1.5:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 80mA
-12(-/+0.5)V / 80mA
Fig.1
SW-DA1W-5S
(Absorptive)
0.2 - 4 1.8 75 1.5:1 250 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
2 - 14 GHz
(Fast Switching)
SW-L440-5S
(Reflective)
2 - 12.4 2.5 55 1.7:1 10 ns 40 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 70mA
-12(-/+0.5)V / 80mA
Fig.1
12.4 - 14 50
SW-L410-5S
(Absorptive)
2 - 12.4 2.5 60 1.7:1 10 ns 40 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
12.4 - 14 55
0.4 - 14 GHz
(Fast Switching)
SW-J440-5S
(Reflective)
0.4 - 12.4 2.7 55 1.7:1 25 ns 60 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 70mA
-12(-/+0.5)V / 80mA
Fig.1
12.4 - 14 50
SW-J410-5S
(Absorptive)
0.4 - 12.4 2.7 60 1.7:1 25 ns 60 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
12.4 - 14 55
1 - 15 GHz

SW-K03W-5S
(Reflective)
1 - 6 2.7 70 1.7:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 70mA
-12(-/+0.5)V / 70mA
Fig.1
 6 - 12.4 60
12.4 - 15 55

SW-K01W-5S
(Absorptive)
1 - 6 2.7 75 1.7:1 250 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 140mA
-12(-/+0.5)V / 70mA
 6 - 12.4 65
12.4 - 15 60


Broadband SP5T Switches (Reflective / Absorptive)
Frequencies from 100MHz to 20GHz

Model No.
Frequency
(GHz)
Insertion
Loss
(dB) Max
Isolation
(dB) Min
VSWR
Max
Rise/Fall
Time
Max
On/Off
Time
Max
Power
Handling, Max
Supply
Voltage
Outline
Drawing
Cw / Avg Peak
2 - 18 GHz
SW-S200-5S
(Reflective)
Response Curves in PDF
2 - 10 2.4 60 1.8:1 20 ns 60 ns +30dbm 10W
(1μS, PW)
+5(-/+0.25)V / 130mA
-12(-/+0.5)V / 80mA
Fig.1
10 - 18 50
SW-S270-5S
(Absorptive)
Response Curves in PDF
2 - 10 3.1 65 1.8:1 20 ns 60 ns +24dbm 5W
(1μS, PW)
+5(-/+0.25)V / 150mA
-12(-/+0.5)V / 80mA
10 - 18 52

SW-S01W-5S
(Absorptive)
2 - 6 3.2 90 1.9:1 150 ns 250 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 140mA
-12(-/+0.5)V / 70mA
6 - 12 80
12 - 18 70

SW-S510-5S
(Absorptive)
Fast Switching
2 - 9 3.0 70 2:1 15 ns 40 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 140mA
-12(-/+0.5)V / 70mA
9 - 18 60
SW-S000-5S
(Reflective)
Response Curves in PDF
2 - 18 2.6 70 1.8:1 15 ns 60 ns +30dbm 10W
(1μS, PW)
+5(�0.25)V / 160mA
-12(�0.5)V / 80mA
SW-S070-5S
(Absorptive)
2 - 18 3.5 75 1.9:1 20 ns 60 ns +24dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
0.5 - 18 GHz
SW-U200-5S
(Reflective)
0.5 - 10 2.7 60 1.8:1 30 ns 70 ns +30dbm 10W
(1μS, PW)
+5(-/+0.25)V / 130mA
-12(-/+0.5)V / 80mA
Fig.1
10 - 18 50

SW-U01W-5S
(Absorptive)
0.5 - 6 3.2 90 1.9:1 150 ns 250 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 140mA
-12(-/+0.5)V / 70mA
6 - 12 80
12 - 18 70
SW-U000-5S
(Reflective)
0.5 - 18 3.0 68 1.9:1 30 ns 70 ns +30dbm 10W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
SW-U070-5S
(Absorptive)
0.5 - 18 3.7 75 2:1 25 ns 80 ns +24dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
0.1 - 18 GHz
                  Fig.1
SW-V010-5S
(Absorptive)
0.1 - 6 3.1 90 1.9:1 150 ns 250 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
6 - 12 80
12 - 18 70
SW-V000-5S
(Reflective)
0.1 - 18 3.2 70 1.9:1 50 ns 150 ns +30dbm
(+27dBm Max
Below 300MHz)
5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
SW-V070-5S
(Absorptive)
Response Curves in PDF
0.1 - 18 3.8 75 1.9:1 50 ns 150 ns +24dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
2 - 20 GHz
                  Fig.1

SW-P01W-5S
(Absorptive)
2 - 6 3.4 90 1.9:1 150 ns 250 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 140mA
-12(-/+0.5)V / 70mA
6 - 12 80
12 - 20 70

SW-P510-5S
(Absorptive)
Fast Switching
2 - 9 3.4 70 2:1 15 ns 40 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 140mA
-12(-/+0.5)V / 70mA
9 - 18 60
18 - 20 55
SW-P000-5S
(Reflective)
2 - 20 2.8 70 1.9:1 15 ns 60 ns +30dbm 10W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA
SW-P070-5S
(Absorptive)
2 - 20 3.8 75 2:1 20 ns 60 ns +24dbm 5W
(1μS, PW)
+5(-/+0.25)V / 160mA
-12(-/+0.5)V / 80mA




All Models:
 Impedance: 50 Ω Nominal
 Control Input Characteristic: TTL, One Unit Load (1.6mA Sink / 40μA Source)
 Control Logic: 5-Controls / Floating-High
Logic "0" for path "ON" ( 0 to +0.8V)
Logic "1" for path "OFF" (+2.2 to +5.0V)
 Connectors:
- RF Input / Output SMA (female)
- Supply Solder Pins
- Control Solder Pins

Environmental Ratings:
 Temperature:
- Operating -55 degC to +95 degC
- Storage -60 degC to +110 degC
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) units with combination of the following options may require some specification tradeoffs from the standard
2) Some options may not be available on all models
 Supply Voltages  Video Suppression Filters
   A1)  +5 ( -/+ 0.25 )V  /  -5 ( -/+ 0.25 )V { Recommended for Low Power Consumption <> Additional Switching Delay (On/Off Time) }   G1) VF @ Common Port <> 0.25dB additional Loss
  A2)  +5 ( -/+ 0.25 )V  /  -15 ( -/+ 0.5 )V   G2) VF @ J1 - J5 Ports <> 0.25dB additional Loss
  A3)  +12 ( -/+ 0.5 )V  /  -12 ( -/+ 0.5 )V G3) VF @ All Ports <> 0.5dB additional Loss
  A4)  +15 ( -/+ 0.5 ) V  /  -15 ( -/+ 0.5 )V
  Other Possible Options (Consult Factory)
  RF Connectors - Higher Isolation
  B1) J1 - J5 Ports with SMA(M)   - Switch Without Driver
B2) All SMA(M) - Higher Power
B3) COM Port with SMA(M)   - Etc.

 Control Function
  F1) Inverted Logic, ("1" = Path "ON")
  F2) Binary Coded Logic, (3 Controls + Enable)
  > Outline for Switch with Option "F2"   Fig. 3
