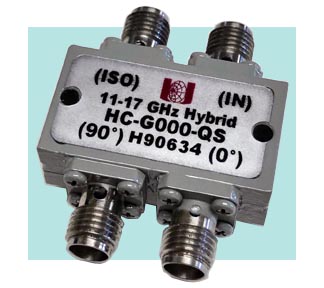

| 90deg Hybrid Couplers | |
Frequencies Up to 19 GHz Narrow Bands
to Multi-Octave Bands Stripline Constructions
ECCN: EAR99 |
|
| - Specifications are subject to change
without notice - Click on the product model number for Specifications-Sheet in PDF - Click on "  "
to see the actual response curves (subject to availability) |
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|
Narrow-Band 90deg Hybrids ( Stripline Construction ) 330 MHz - 19 GHz |
|||||||||
| Model Number  |
Freq. Range (GHz) |
Coupling (dB) Max (1) |
Freq.
Flatness (dB) Max |
Isolation (dB) Min |
Phase Error (-/+deg) Max |
VSWR Max |
Power (Max Input) |
Outline Drawing |
|
|
Avg (W) |
Peak (KW) |
||||||||
|
HC-AB00-QS |
0.33 - 0.67 | 3.1-/+0.5 | -/+0.50 | 24 | -/+1.5 deg | 1.15:1 | 50 | 3 | Fig.1 |
|
HC-B000-QS |
0.5 - 1 | 3.1-/+0.6 | -/+0.50 | 24 | -/+1.5 deg | 1.15:1 | 50 | 3 | |
|
HC-C000-QS |
1 - 2 | 3.1-/+0.6 | -/+0.50 | 22 | -/+2 deg | 1.20:1 | 50 | 3 | |
| HC-CD00-QS | 1.5 - 3 | 3.1-/+0.6 | -/+0.50 | 22 | -/+2 deg | 1.20:1 | 50 | 3 | |
|
HC-D000-QS |
2 - 4 | 3.1-/+0.6 | -/+0.50 | 20 | -/+2 deg | 1.20:1 | 50 | 3 | |
| HC-H000-QS | 3 - 6 | 3.1-/+0.6 | -/+0.50 | 20 | -/+3 deg | 1.25:1 | 50 | 3 | |
|
HC-E000-QS |
4 - 8 | 3.1-/+0.6 | -/+0.50 | 20 | -/+3 deg | 1.30:1 | 50 | 3 | |
|
HC-Y000-QS |
5 - 10 | 3.2-/+0.6 | -/+0.60 | 19 | -/+3 deg | 1.40:1 | 30 | 2 | |
|
HC-F000-QS |
8.5 - 14 | 3.3-/+0.7 | -/+0.60 | 17 | -/+3 deg | 1.40:1 | 30 | 2 | |
|
HC-G000-QS |
11 - 17 | 3.3-/+0.8 | -/+0.70 | 15 | -/+5 deg | 1.45:1 | 30 | 2 | |
|
HC-P000-QS |
12 - 19 | 3.5-/+0.8 | -/+0.70 | 15 | -/+5 deg | 1.5:1 | 30 | 2 | |
|
1) Coupling is nominal and includes insertion loss and frequency flatness |
|||||||||
|
Wide-Band 90deg Hybrids
( Stripline Construction ) 500 MHz - 8 GHz |
|||||||||
| Model Number |
Freq. Range (GHz) |
Coupling (dB) Max (1) |
Freq.
Flatness (dB) Max |
Isolation (dB) Min |
Phase Error (-/+deg) Max |
VSWR Max |
Power (Max Input) |
Outline Drawing |
|
| Avg | Peak | ||||||||
|
HC-J000-QS |
0.5 - 2 | 3.2-/+0.6 | -/+0.50 | 24 | -/+3 deg | 1.20:1 | 50 W | 3 KW | Fig.2 |
|
HC-K000-QS |
1 - 4 | 3.2-/+0.6 | -/+0.60 | 22 | -/+5 deg | 1.25:1 | 50 W | 3 KW | |
|
HC-L000-QS |
2 - 8 | 3.3-/+0.8 | -/+0.60 | 17 | -/+5 deg | 1.35:1 | 50 W | 3 KW | |
|
1) Coupling is nominal and includes insertion loss and frequency flatness |
|||||||||
| All Models: | |
 Impedance: |
50 Ω Nominal |
| Connectors: |
SMA (female) |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -40 degC to +85 degC | |
| - Storage | -50 degC to +100 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp.
Cycle: |
Mil-STD-202F, Method 107D Condition B | |
Available Options: 1) units with combination of the following options may require some specification tradeoffs from the standard 2) Some options may not be available on all models |
|||
| Connectors |
Other
Options (consult factory) |
||
| B1) SMA(M) for Input | - Terminated Isolated Port | ||
| B2) SMA(M) for Outputs ( 0deg & 90deg ) | - Etc. | ||
| B3) SMA(M) for All Ports | |||
|
|
|
|
|
