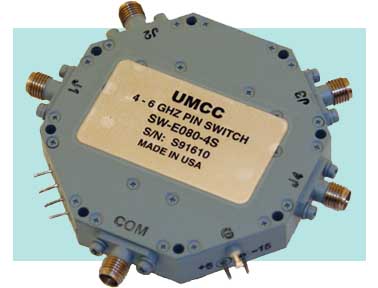

| High Power SP4T Switches | |||
 |
Common Specifications | ||
|
> Specifications are subject to change
without notice > for Specifications-Sheet in PDF, click on the product model number > to see the actual response curves, click on "  " (subject to availability) |
|||
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|||
Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
Isolation (dB) Min |
VSWR Max |
Rise/Fall Time Max |
On/Off Time Max |
Power Handling, Max |
Supply Voltage |
Outline Drawing |
|
| cw/avg | peak | |||||||||
|
SR-420H-4S
(Reflective) |
0.2 - 2 | 1.0 | 50 | 1.45:1 | 250ns | 350ns |
8W (Note 1) |
50W |
+5(-/+0.25)V / 190mA -12(-/+0.5)V / 100mA |
Fig.1 |
| 2 - 4.2 | 40 | |||||||||
| SW-D08A-4S (Reflective) |
1.76 - 2.64 | 1.1 | 60 | 1.5:1 | 500ns | 750ns | 40W (Note 1) |
250W (Note 3) |
+5(-/+0.25)V / 450mA -15(-/+0.5)V / 125mA |
Fig.2 |
|
SW-3350-4S (Reflective) |
2.85 - 3.85 | 1.2 | 70 | 1.5:1 | 500ns | 750ns | 30W (Note 1) |
250W (Note 3) |
+5(-/+0.25)V / 450mA -15(-/+0.5)V / 125mA |
Fig.2 |
|
SW-5300-4S (Reflective) |
4.6 - 6 | 1.7 | 60 | 1.5:1 | 500ns | 750ns | 30W (Note 1) |
250W (Note 3) |
+5(-/+0.25)V / 450mA -15(-/+0.5)V / 125mA |
Fig.2 |
|
SR-L01H-4S (Absorptive) |
2 - 14 | 3.0 | 45 | 1.75:1 | 75ns | 110ns | 2W (Note 1) |
25W (Note 3) |
+5(-/+0.25)V / 130mA -12(-/+0.5)V / 100mA |
Fig.1 |
|
SR-S20H-4S (Reflective) |
2 - 18 | 2.7 | 50 | 1.9:1 | 50ns | 140ns | 2W (Note 1) |
25W (Note 3) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 90mA |
Fig.1 |
|
SR-U20H-4S (Reflective) |
0.5 - 18 | 2.7 | 50 | 1.9:1 | 50ns | 140ns | 2W (Note 1) |
25W (Note 3) |
+5(-/+0.25)V / 110mA -12(-/+0.5)V / 90mA |
Fig.1 |
|
SW-U07H-4S (Absorptive) |
0.5 - 18 | 3.8 | 80 | 1.8:1 | 150ns | 250ns | 2W (Note 1) |
25W (Note 3) |
+5(-/+0.25)V / 150mA -12(-/+0.5)V / 250mA |
Fig.3 |
|
1) Hot Switching 2) Cold Switching 3) 1μS Pulse Width Max |
||||||||||
| All Models: | ||
Impedance: |
50 Ω Nominal | |
|
Control Input Characteristic: |
TTL, One Unit Load (1.6mA Sink / 40μA Source) | |
| Logic "0" ( 0 to +0.8V) <> Logic "1" (+2.2 to +5.0V) | ||
|
Connectors: |
||
| - RF Input / Output | SMA (female) | |
| - Supply / Control | Solder Pins | |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
|
|
|
|
 |
