SP8T Switches

UMCC

SP10T Switches
Frequencies from 20MHz to 20GHz
All with High Speed TTL Driver
Available with variety of options
Small Compact Packages

ECCN: EAR99

Sales/Technical Contact Email:  Sales@UMCC111.com



RF Circuit / Reflective SP10T



RF Circuit / Absorptive SP10T





  Common Specifications

  Available Options
    > Specifications are subject to change without notice
> for Specifications-Sheet in PDF, click on  the product model number

> to see the actual response curves, click on  ""  (subject to availability)

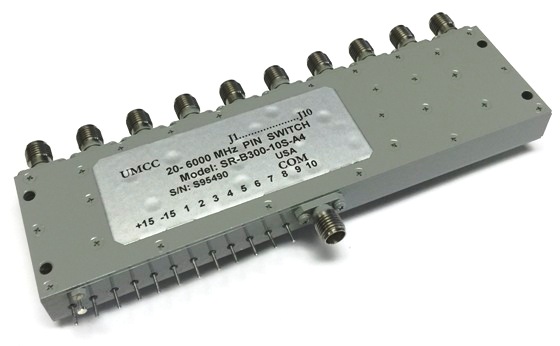

Broadband SP10T Switches (Reflective / Absorptive)
Frequencies from 20MHz to 15GHz

Model No.
Frequency
(GHz)
Insertion
Loss
(dB) Max
Isolation
(dB) Min
VSWR
Max
Rise/Fall
Time
Max
On/Off
Time
Max
Power
Handling, Max
Supply
Voltage
Outline
Drawing
Cw / Avg Peak
20 MHz - 6 GHz
SR-B300-10S
(Reflective)
Response Curves in PDF
0.02 - 6 3.0 65 1.7:1
(1.8:1 Over
20-30MHz)
250 ns 300 ns +27dbm
(+23dBm Max
Below 100MHz)
5W
(5μS, PW)
+5(-/+0.25)V / 110mA
-12(-/+0.5)V / 130mA
for lower power consumption, choose Option A1(+5/-5V)
Fig.1
Std. Pkg.
( Solderpins )


Fig.2
Option E1
( Multipin )
SR-B310-10S
(Absorptive)
0.02 - 6 3.0 70 1.7:1
(1.8:1 Over
20-30MHz)
250 ns 300 ns +27dbm
(+23dBm Max
Below 100MHz)
5W
(5μS, PW)
+5(-/+0.25)V / 300mA
-12(-/+0.5)V / 130mA
for lower power consumption, choose Option A1(+5/-5V)
0.2 - 4 GHz
SR-DA3W-10S
(Reflective)
0.2 - 4 2.2 70 1.6:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 120mA
-12(-/+0.5)V / 120mA

for lower power consumption, choose Option A1(+5/-5V)
Fig.1
Std. Pkg.
( Solderpins )


Fig.2
Option E1
( Multipin )
SR-DA1W-10S
(Absorptive)
0.2 - 4 2.2 75 1.6:1 250 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 260mA
-12(-/+0.5)V / 120mA

for lower power consumption, choose Option A1(+5/-5V)
 1 - 15 GHz

SR-K03W-10S
(Reflective)
1 - 6 3.7 65 1.9:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 120mA
-12(-/+0.5)V / 110mA
for lower power consumption, choose Option A1(+5/-5V)
Fig.1
Std. Pkg.
( Solderpins )


Fig.2
Option E1
( Multipin )
 6 - 12.4 60
12.4 - 15 55

SR-K01W-10S
(Absorptive)
1 - 6 3.7 75 1.9:1 250 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 260mA
-12(-/+0.5)V / 110mA
for lower power consumption, choose Option A1(+5/-5V)
 6 - 12.4 65
12.4 - 15 60


Broadband SP10T Switches (Reflective / Absorptive)
Frequencies from 500MHz to 20GHz

Model No.
Frequency
(GHz)
Insertion
Loss
(dB) Max
Isolation
(dB) Min
VSWR
Max
Rise/Fall
Time
Max
On/Off
Time
Max
Power
Handling, Max
Supply
Voltage
Outline
Drawing
Cw / Avg Peak
2 - 18 GHz
SR-S04W-10S
(Reflective)
2 - 8 4.1 80 2:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 110mA
-12(-/+0.5)V / 130mA
for lower power consumption, choose Option A1(+5/-5V)
Fig.1
Std. Pkg.
( Solderpins )


Fig.2
Option E1
( Multipin )
8 - 18 70
SR-S01W-10S
(Absorptive)
2 - 8 4.1 85 2:1 250 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 280mA
-12(-/+0.5)V / 130mA
for lower power consumption, choose Option A1(+5/-5V)
8 - 18 75
0.5 - 18 GHz
SR-U04W-10S
(Reflective)
0.5 - 8 4.4 80 2:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 110mA
-12(-/+0.5)V / 130mA
for lower power consumption, choose Option A1(+5/-5V)
Fig.1
Std. Pkg.
( Solderpins )


Fig.2
Option E1
( Multipin )
8 - 18 70
SR-U01W-10S
(Absorptive)
0.5 - 8 4.4 85 2:1 250 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 280mA
-12(-/+0.5)V / 130mA
for lower power consumption, choose Option A1(+5/-5V)
8 - 18 75
2 - 20 GHz
                  Fig.1
Std. Pkg.
( Solderpins )


Fig.2
Option E1
( Multipin )







All Models:
 Impedance: 50 Ω Nominal
 Control Input Characteristic: TTL, One Unit Load (1.6mA Sink / 40μA Source)
 Control Logic: 10-Controls / Floating-High
Logic "0" for path "ON" ( 0 to +0.8V)
Logic "1" for path "OFF" (+2.2 to +5.0V)
 Connectors:
- RF Input / Output SMA (female)
- Supply Solder Pins
- Control Solder Pins

Environmental Ratings:
 Temperature:
- Operating -55 degC to +95 degC
- Storage -60 degC to +110 degC
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) units with combination of the following options may require some specification tradeoffs from the standard
2) Some options may not be available on all models
 Supply Voltages  Control Function
   A1)  +5 ( -/+ 0.25 )V  /  -5 ( -/+ 0.25 )V { Recommended for Low Power Consumption <> Additional Switching Delay (On/Off Time) }   F1) Inverted Logic, ("1" = Path "ON")
  A2)  +5 ( -/+ 0.25 )V  /  -15 ( -/+ 0.5 )V   F2) Binary Coded Logic, (4 Controls + Enable)
  A3)  +12 ( -/+ 0.5 )V  /  -12 ( -/+ 0.5 )V   > Outline for Switch with Option "F2"   Fig. 3
  A4)  +15 ( -/+ 0.5 ) V  /  -15 ( -/+ 0.5 )V  Video Suppression Filters
    G1) VF @ Common Port <> 0.25dB additional Loss
  RF Connectors   G2) VF @ J1 - J10 Ports <> 0.25dB additional Loss
  B1) J1 - J10 SMA(M)   G3) VF @ All Ports <> 0.5dB additional Loss
B2) All SMA(M)
B3) COM Port with SMA(M) Other Possible Options (Consult Factory)
    - Higher Isolation
 Control & Supply Connectors   - Switch Without Driver
  E1) 15-Pin Micro-D Male (Plug) with Jackposts   - Higher Power
      - Etc.
