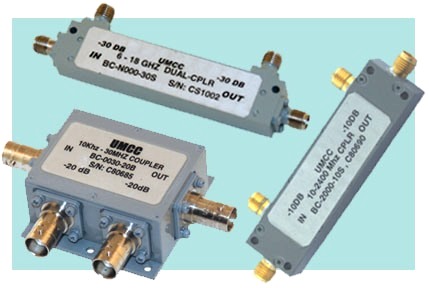

Dual Directional Couplers (Bi-Directional) | |
Frequencies Up to 18 GHz Narrow Bands to Multi-Octave Bands Lumped Element or Stripline Constructions ECCN: EAR99 |
|
- Specifications are subject to
change without notice - Click on the product model number for Specifications-Sheet in PDF - Click on "" to see the actual response curves (subject to availability) |
|
-Sales/Technical Contact Email: Sales@UMCC111.com |
RF Circuit |
|
Low Frequency Dual Couplers
( Lumped Element ) 10 KHz - 2400 MHz |
|||||||||||
10 KHz - 30 MHz | |||||||||||
Model
No. |
Freq. Range |
Coupling (dB) Max (1,2) |
Coupling
Flatness (dB) Max |
Directivity (dB) Min |
Insertion Loss (dB) Max (3) |
VSWR Max |
Power Handling CW/Peak |
Outline Drawing |
|||
BC-003A-20S with SMA(f) BC-003A-20B with BNC(f) BC-003A-20N with N(f) |
10KHz -30MHz | 20 -/+ 1 | -/+ 0.5 | 20 |
0.01-1 MHz |
1-30 MHz |
1.15:1 | 2 W |
Fig.6 Universal Pkg. |
||
2.0 | 2.5 | ||||||||||
BC-003A-30S with SMA(f) BC-003A-30B with BNC(f) BC-003A-30N with N(f) |
10KHz -30MHz | 30 -/+ 1 | -/+ 0.5 | 20 |
0.01-1 MHz |
1-30 MHz |
1.15:1 | 2 W |
Fig.6 Universal Pkg. |
||
2.0 | 2.5 | ||||||||||
20 KHz - 60 MHz | |||||||||||
Model No. | Freq. Range |
Coupling (dB) Max (1,2) |
Coupling
Flatness (dB) Max |
Directivity (dB) Min |
Insertion Loss (dB) Max (3) |
VSWR Max |
Power Handling CW/Peak |
Outline Drawing |
|||
BC-006S-10S Slimline Pkg. with SMA(f) |
20KHz - 60MHz | 10 -/+ 0.3 | -/+ 0.25 | 0.02-20 MHz |
20-60 MHz |
1.5 | 20-50 KHz |
0.05-60 MHz |
1 W |
Fig.5 Slimline Pkg. with SMA(f) |
|
22 | 15 | 1.50:1 | 1.25:1 | ||||||||
BC-0060-10S with SMA(f) BC-0060-10B with BNC(f) BC-0060-10N with N(f) |
20KHz - 60MHz | 10 -/+ 0.3 | -/+ 0.25 | 0.02-20 MHz |
20-60 MHz |
1.5 | 20-50 KHz |
0.05-60 MHz |
1 W |
Fig.6 Universal Pkg. |
|
22 | 15 | 1.50:1 | 1.25:1 | ||||||||
1 - 500 MHz | |||||||||||
Model No. | Freq. Range |
Coupling (dB) Max (1,2) |
Coupling
Flatness (dB) Max |
Directivity (dB) Min |
Insertion Loss (dB) Max (3) |
VSWR Max |
Power Handling CW/Peak |
Outline Drawing |
|||
BC-050S-11S Slimline Pkg. with SMA(f) |
1-500 MHz | 11 -/+ 1 | -/+ 0.7 |
1-100 MHz |
100-500 MHz |
1-100 MHz |
100-500 MHz |
1-2
MHz |
2-500 MHz |
1 W |
Fig.5 Slimline Pkg. with SMA(f) |
25 | 20 | 2.5 | 3.2 | 1.55:1 | 1.40:1 | ||||||
BC-050A-11S with SMA(f) BC-050A-11B with BNC(f) BC-050A-11N with N(f) |
1-500 MHz | 11 -/+ 1 | -/+ 0.7 | 1-100 MHz |
100-500 MHz |
1-100 MHz |
100-500 MHz |
1-2
MHz |
2-500 MHz |
1 W |
Fig.6 Universal Pkg. |
25 | 20 | 2.5 | 3.2 | 1.55:1 | 1.40:1 | ||||||
BC-050S-20S Slimline Pkg. with SMA(f) |
1-500 MHz | 20 -/+ 1 | -/+ 0.7 | 1-100 MHz |
100-500 MHz |
1.6 | 1-2
MHz |
2-500 MHz |
2 W |
Fig.5 Slimline Pkg. with SMA(f) |
|
25 | 19 | 1.50:1 | 1.35:1 | ||||||||
BC-050A-20S with SMA(f) BC-050A-20B with BNC(f) BC-050A-20N with N(f) |
1-500 MHz | 20 -/+ 1 | -/+ 0.7 | 1-100 MHz |
100-500 MHz |
1.6 | 1-2
MHz |
2-500 MHz |
2 W |
Fig.6 Universal Pkg. |
|
25 | 19 | 1.50:1 | 1.35:1 | ||||||||
BC-050S-30S Slimline Pkg. with SMA(f) |
1-500 MHz | 30 -/+ 1 | -/+ 0.7 | 1-100 MHz |
100-500 MHz |
1.6 | 1-2
MHz |
2-500 MHz |
2 W |
Fig.5 Slimline Pkg. with SMA(f) |
|
25 | 19 | 1.50:1 | 1.35:1 | ||||||||
BC-050A-30S with SMA(f) BC-050A-30B with BNC(f) BC-050A-30N with N(f) |
1-500 MHz | 30 -/+ 1 | -/+ 0.7 |
1-100 MHz |
100-500 MHz |
1.6 | 1-2
MHz |
2-500 MHz |
2 W |
Fig.6 Universal Pkg. |
|
25 | 19 | 1.50:1 | 1.35:1 | ||||||||
20 - 1000 MHz | |||||||||||
Model No. | Freq. Range |
Coupling (dB) Max (1,2) |
Coupling
Flatness (dB) Max |
Directivity (dB) Min |
Insertion Loss (dB) Max (3) |
VSWR Max |
Power Handling CW/Peak |
Outline Drawing |
|||
BC-100S-11S Slimline Pkg. with SMA(f) |
20-1000 MHz | 11 -/+ 1 |
-/+ 1 |
17 |
20-500 MHz |
500-1000 MHz |
20-30 MHz |
30-1000 MHz |
1 W |
Fig.5 Slimline Pkg. with SMA(f) |
|
3.4 | 3.4 | 1.70:1 | 1.55:1 | ||||||||
BC-100A-11S with SMA(f) BC-100A-11B with BNC(f) BC-100A-11N with N(f) |
20-1000 MHz | 11 -/+ 1 |
-/+ 1 |
17 |
20-500 MHz |
500-1000 MHz |
20-30 MHz |
30-1000 MHz |
1 W |
Fig.6 Universal Pkg. |
|
3.4 | 3.4 | 1.70:1 | 1.55:1 | ||||||||
BC-100S-20S Slimline Pkg. with SMA(f) |
20-1000 MHz | 20 -/+ 1 | -/+ 1 | 18 |
20-500 MHz |
500-1000 MHz |
20-30 MHz |
30-1000 MHz |
2 W |
Fig.5 Slimline Pkg. with SMA(f) |
|
1 | 1.6 | 1.65:1 | 1.45:1 | ||||||||
BC-100A-20S with SMA(f) BC-100A-20B with BNC(f) BC-100A-20N with N(f) |
20-1000 MHz | 20 -/+ 1 | -/+ 1 | 18 |
20-500 MHz |
500-1000 MHz |
20-30 MHz |
30-1000 MHz |
2 W |
Fig.6 Universal Pkg. |
|
1 | 1.6 | 1.65:1 | 1.45:1 | ||||||||
BC-100S-30S Slimline Pkg. with SMA(f) |
20-1000 MHz | 30 -/+ 1.5 | -/+ 1.2 | 18 | 20-500 MHz |
500-1000 MHz |
20-30 MHz |
30-1000 MHz |
2 W |
Fig.5 Slimline Pkg. with SMA(f) |
|
1 | 1.6 | 1.60:1 | 1.40:1 | ||||||||
BC-100A-30S with SMA(f) BC-100A-30B with BNC(f) BC-100A-30N with N(f) |
20-1000 MHz | 30 -/+ 1.5 | -/+ 1.2 | 18 | 20-500 MHz |
500-1000 MHz |
20-30 MHz |
30-1000 MHz |
2 W |
Fig.6 Universal Pkg. |
|
1 | 1.6 | 1.60:1 | 1.40:1 | ||||||||
10 - 2400 MHz | |||||||||||
Model No. | Freq. Range |
Coupling (dB) Max (1,2) |
Coupling
Flatness (dB) Max |
Directivity (dB) Min |
Insertion Loss (dB) Max (3) |
VSWR Max |
Power Handling CW/Peak |
Outline Drawing |
|||
BC-2000-10S |
10-2400 MHz | 10 -/+ 1 | -/+ 0.75 | 16 | 7.0 | 1.35:1 | 1 W | Fig.4 | |||
BC-2000-20S |
10-2000 MHz | 20 -/+ 1.5 | -/+ 1.7 | 18 | 2.2 | 1.35:1 | 1 W | ||||
BC-2000-30S | 30 -/+ 1.5 | -/+ 1.7 | 18 | 2.2 | 1.35:1 | 1 W | |||||
1) Coupling is nominal and relative to input power 2) Coupling includes frequency flatness 3) Insertion Loss includes Coupled power |
Narrow-Band Dual Directional Couplers
( Stripline Construction ) |
||||||||||
Model
No. |
Freq. Range (GHz) |
Coupling (dB) Max (1,2) |
Freq.
Flatness (dB) Max |
Directivity (dB) Min |
Insertion
Loss (dB) Max (3) |
VSWR Max |
Power (Max Input) |
Outline Drawing |
||
LINE | CPL |
Avg (W) |
Peak (KW) |
|||||||
BC-CH00-6S |
0.9 - 2.1 | 6 -/+ 0.5 | -/+ 0.40 | 28 | 2.90 | 1.20 | 1.20 | 4 | 1 | Fig.1 |
BC-C000-10S | 1 - 2 | 10 -/+ 1.0 | -/+ 0.60 | 20 | 1.40 | 1.25 | 1.30 | 10 | 1 | |
BC-C000-16S | 16 -/+ 1.0 | -/+ 0.60 | 20 | 0.60 | 1.20 | 1.25 | 30 | 1 | ||
BC-C000-20S |
20 -/+ 1.0 | -/+ 0.60 | 20 | 0.50 | 1.20 | 1.25 | 50 | 1 | ||
BC-C000-30S | 30 -/+ 1.0 | -/+ 0.70 | 20 | 0.40 | 1.20 | 1.25 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-D000-6S | 2 - 4 | 6 -/+ 1.0 | -/+ 0.60 | 18 | 3.20 | 1.30 | 1.35 | 4 | 1 | Fig.2 |
BC-D000-10S | 10 -/+ 1.0 | -/+ 0.60 | 18 | 1.40 | 1.30 | 1.35 | 10 | 1 | ||
BC-D000-16S | 16 -/+ 1.0 | -/+ 0.60 | 18 | 0.60 | 1.25 | 1.30 | 30 | 1 | ||
BC-D000-20S | 20 -/+ 1.0 | -/+ 0.60 | 18 | 0.50 | 1.25 | 1.30 | 50 | 1 | ||
BC-D000-30S | 30 -/+ 1.0 | -/+ 0.70 | 18 | 0.40 | 1.25 | 1.30 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-H000-6S | 3 - 6 | 6 -/+ 1.0 | -/+ 0.60 | 17 | 3.00 | 1.35 | 1.40 | 4 | 1 | Fig.2 |
BC-H000-10S | 10 -/+ 1.0 | -/+ 0.60 | 17 | 1.70 | 1.35 | 1.40 | 10 | 1 | ||
BC-H000-16S | 16 -/+ 1.0 | -/+ 0.60 | 17 | 0.70 | 1.30 | 1.35 | 30 | 1 | ||
BC-H000-20S | 20 -/+ 1.0 | -/+ 0.60 | 17 | 0.60 | 1.30 | 1.35 | 50 | 1 | ||
BC-H000-30S | 30 -/+ 1.0 | -/+ 0.70 | 17 | 0.50 | 1.30 | 1.35 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-E000-6S | 4 - 8 | 6 -/+ 1.0 | -/+ 0.60 | 15 | 3.00 | 1.35 | 1.40 | 4 | 1 | Fig.2 |
BC-E000-10S | 10 -/+ 1.0 | -/+ 0.60 | 15 | 1.70 | 1.35 | 1.40 | 10 | 1 | ||
BC-E000-16S | 16 -/+ 1.0 | -/+ 0.60 | 15 | 0.90 | 1.30 | 1.35 | 30 | 1 | ||
BC-E000-20S | 20 -/+ 1.0 | -/+ 0.60 | 15 | 0.80 | 1.30 | 1.35 | 50 | 1 | ||
BC-E000-30S |
30 -/+ 1.0 | -/+ 0.70 | 15 | 0.60 | 1.30 | 1.35 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-F000-6S | 6.5 - 14.5 | 6 -/+ 1.0 | -/+ 0.60 | 11 | 3.00 | 1.50 | 1.50 | 4 | 0.5 | Fig.3 |
BC-F000-10S | 10 -/+ 1.0 | -/+ 0.60 | 11 | 2.00 | 1.50 | 1.50 | 10 | 0.5 | ||
BC-F000-16S | 16 -/+ 1.0 | -/+ 0.60 | 11 | 1.00 | 1.45 | 1.50 | 30 | 0.5 | ||
BC-F000-20S | 20 -/+ 1.0 | -/+ 0.60 | 11 | 0.70 | 1.45 | 1.50 | 50 | 1 | ||
BC-F000-30S | 30 -/+ 1.0 | -/+ 0.70 | 11 | 0.60 | 1.45 | 1.50 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-G000-6S | 12.4 - 18 | 6 -/+ 1.0 | -/+ 0.60 | 11 | 3.50 | 1.55 | 1.60 | 4 | 0.5 | Fig.3 |
BC-G000-10S | 10 -/+ 1.0 | -/+ 0.60 | 11 | 2.00 | 1.55 | 1.60 | 10 | 0.5 | ||
BC-G000-16S | 16 -/+ 1.0 | -/+ 0.60 | 11 | 1.20 | 1.50 | 1.60 | 30 | 0.5 | ||
BC-G000-20S | 20 -/+ 1.0 | -/+ 0.60 | 11 | 0.80 | 1.50 | 1.60 | 50 | 1 | ||
1) Coupling is nominal and relative to input power 2) Coupling includes frequency flatness 3) Insertion Loss includes Coupled power |
Wide-Band Dual Directional Couplers
( Stripline Construction ) 1 - 18 GHz |
||||||||||
Model
No. |
Freq. Range (GHz) |
Coupling (dB) Max (1,2) |
Freq.
Flatness (dB) Max |
Directivity (dB) Min |
Insertion
Loss (dB) Max (3) |
VSWR Max |
Power (Max Input) |
Outline Drawing |
||
LINE | CPL |
Avg (W) |
Peak (KW) |
|||||||
BC-K000-6S | 1 - 4 | 6 -/+ 1.0 | -/+ 0.55 | 17 | 3.60 | 1.35 | 1.35 | 4 | 1 | Fig.1 |
BC-K000-10S | 10 -/+ 1.0 | -/+ 0.55 | 17 | 1.50 | 1.35 | 1.35 | 10 | 1 | ||
BC-K000-16S | 16 -/+ 1.0 | -/+ 0.55 | 17 | 1.20 | 1.35 | 1.35 | 30 | 1 | ||
BC-K000-20S | 20 -/+ 1.0 | -/+ 0.55 | 16 | 0.70 | 1.30 | 1.30 | 50 | 1 | ||
BC-K000-30S | 30 -/+ 1.0 | -/+ 0.60 | 16 | 0.60 | 1.30 | 1.30 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-L000-6S | 2 - 8 | 6 -/+ 1.0 | -/+ 0.80 | 16 | 3.90 | 1.45 | 1.35 | 4 | 1 | Fig.2 |
BC-L000-10S | 10 -/+ 1.0 | -/+ 0.80 | 16 | 1.70 | 1.45 | 1.35 | 10 | 1 | ||
BC-L000-16S | 16 -/+ 1.0 | -/+ 0.80 | 16 | 1.30 | 1.45 | 1.35 | 30 | 1 | ||
BC-L000-20S | 20 -/+ 1.0 | -/+ 0.80 | 16 | 0.80 | 1.40 | 1.35 | 50 | 1 | ||
BC-L000-30S | 30 -/+ 1.0 | -/+ 0.90 | 16 | 0.70 | 1.40 | 1.35 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-M000-6S | 4.5 - 13.5 | 6 -/+ 1.0 | -/+ 0.75 | 13 | 3.90 | 1.50 | 1.50 | 4 | 0.5 | Fig.3 |
BC-M000-10S | 10 -/+ 1.0 | -/+ 0.75 | 13 | 2.00 | 1.50 | 1.50 | 10 | 0.5 | ||
BC-M000-16S | 16 -/+ 1.0 | -/+ 0.75 | 12 | 1.50 | 1.50 | 1.50 | 30 | 0.5 | ||
BC-M000-20S | 20 -/+ 1.0 | -/+ 0.75 | 12 | 1.00 | 1.45 | 1.45 | 50 | 1 | ||
BC-M000-30S | 30 -/+ 1.0 | -/+ 0.75 | 11 | 0.90 | 1.45 | 1.45 | 50 | 1 | ||
Model# | Frequency Band | Coupling (dB) Max |
CPL Flatness
(dB) Max |
Directivity
(dB) Min |
Line Loss
(dB) Max |
VSWR |
Avg (W) |
Peak (KW) |
Outline | |
LINE | CPL | |||||||||
BC-N000-6S | 6 - 18 | 6 -/+ 1.0 | -/+ 0.75 | 12 | 3.90 | 1.60 | 1.55 | 4 | 0.5 | Fig.3 |
BC-N000-10S | 10 -/+ 1.0 | -/+ 0.75 | 12 | 2.10 | 1.60 | 1.55 | 10 | 0.5 | ||
BC-N000-16S | 16 -/+ 1.0 | -/+ 0.75 | 10 | 1.60 | 1.60 | 1.55 | 30 | 0.5 | ||
BC-N000-20S | 20 -/+ 1.0 | -/+ 0.75 | 10 | 1.10 | 1.55 | 1.55 | 50 | 1 | ||
1) Coupling is nominal and relative to input power 2) Coupling includes frequency flatness 3) Insertion Loss includes Coupled power |
All Models: | |
Impedance: | 50 Ω Nominal |
Connectors: | SMA (female) |
Environmental Ratings: |
||
Temperature: | ||
- Operating | -40 degC to +85 degC | |
- Storage | -50 degC to +100 degC | |
Humidity: | Mil-STD-202F, Method 103B Condition B | |
Shock: | Mil-STD-202F, Method 213B Condition B | |
Vibration: | Mil-STD-202F, Method 204D Condition B | |
Altitude: | Mil-STD-202F, Method 105C Condition B | |
Temp. Cycle: | Mil-STD-202F, Method 107D Condition B |
