UMCC

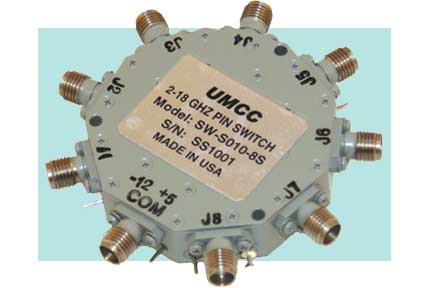

SP8T Switches / Phase Matched
Frequencies from 20MHz to 20GHz
All with High Speed TTL Driver
Available with variety of options
Small Compact Packages
ECCN: EAR99

Sales/Technical Contact Email:  Sales@UMCC111.com

RF Circuit / Reflective SP8T



RF Circuit / Absorptive SP8T





  Common Specifications

  Available Options
    > Specifications are subject to change without notice
> for Specifications-Sheet in PDF, click on  the product model number
> to see the actual response curves, click on  ""  (subject to availability)

Broadband SP8T Switches (Reflective / Absorptive)
Frequencies from 20MHz to 15GHz

Model No.
 Frequency
(GHz)		 Insertion
Loss
(dB) Max		 Isolation
(dB) Min		 VSWR
Max		 Rise/Fall
Time
Max		 On/Off
Time
Max		 Power
Handling, Max		 Supply
Voltage		 Outline
Drawing
Cw / Avg Peak
20 MHz - 6 GHz
SW-B300-8S
(Reflective) 		0.02 - 6 3.0 65 1.6:1
 (1.7:1 Over
20-30MHz)		 150 ns 250 ns +27dbm
 (+23dBm Max
Below 100MHz)		 5W
(5μS, PW)		 +5(-/+0.25)V / 90mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
SW-B310-8S
(Absorptive) 		0.02 - 6 3.0 70 1.6:1
 (1.7:1 Over
20-30MHz)		 150 ns 250 ns +27dbm
 (+23dBm Max
Below 100MHz)		 5W
(5μS, PW)		 +5(-/+0.25)V / 240mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)
0.2 - 4 GHz
SW-DA3W-8S
(Reflective) 		0.2 - 4 2.0 70 1.5:1 350 ns 400 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 110mA
-12(-/+0.5)V / 100mA
 for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
SW-DA1W-8S
(Absorptive)		 0.2 - 4 2.0 75 1.5:1 250 ns 300 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 230mA
-12(-/+0.5)V / 100mA
 for lower power consumption, choose Option A1(+5/-5V)
2 - 14 GHz
(Fast Switching)
SW-L440-8S
(Reflective)		 2 - 12.4 3.3 55 1.9:1 35 ns 80 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 100mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
12.4 - 14 50
SW-L410-8S
(Absorptive)		 2 - 12.4 3.3 60 1.9:1 35 ns 80 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)
12.4 - 14 55
0.4 - 14 GHz
(Fast Switching)
SW-J440-8S
(Reflective) 		0.4 - 12.4 3.5 55 1.9:1 35 ns 80 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 100mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
12.4 - 14 50
SW-J410-8S
(Absorptive)		 0.4 - 12.4 3.5 60 1.9:1 35 ns 80 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)
12.4 - 14 55
1 - 15 GHz

SW-K03W-8S
(Reflective) 		1 - 6 3.5 65 1.85:1 350 ns 400 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 100mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
 6 - 12.4 60
12.4 - 15 55

SW-K01W-8S
(Absorptive) 		1 - 6 3.5 75 1.85:1 250 ns 300 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)
 6 - 12.4 65
12.4 - 15 60


Broadband SP8T Switches (Reflective / Absorptive)
Frequencies from 100MHz to 20GHz

Model No.
 Frequency
(GHz)		 Insertion
Loss
(dB) Max		 Isolation
(dB) Min		 VSWR
Max		 Rise/Fall
Time
Max		 On/Off
Time
Max		 Power
Handling, Max		 Supply
Voltage		 Outline
Drawing
Cw / Avg Peak
2 - 18 GHz
SW-S04W-8S
(Reflective)
 High Isolation		 2 - 8 3.5 80 1.9:1 350 ns 400 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 100mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
8 - 18 75
SW-S01W-8S
(Absorptive)
 High Isolation		 2 - 14 3.8 80 1.9:1 250 ns 300 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)
14 - 18 75
SW-S000-8S
(Reflective)
Fast Switching		 2 - 15 4.0 75 2:1 50 ns 90 ns +30dbm 10W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 110mA
for lower power consumption, choose Option A1(+5/-5V)
15 - 18 65
SW-S070-8S
(Absorptive)
Fast Switching		 2 - 15 4.7 75 2.1:1 50 ns 90 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 120mA
for lower power consumption, choose Option A1(+5/-5V)
15 - 18 65
0.5 - 18 GHz
SW-U04W-8S
(Reflective)
 High Isolation		 0.5 - 8 3.9 80 1.9:1 350 ns 400 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 100mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
8 - 18 75
SW-U01W-8S
(Absorptive)
 High Isolation		 0.5 - 14 4.0 80 1.9:1 250 ns 300 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 100mA
for lower power consumption, choose Option A1(+5/-5V)
14 - 18 75
SW-U000-8S
(Reflective)
Fast Switching		 0.5 - 15 4.4 75 2:1 60 ns 100 ns +30dbm 10W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 110mA
for lower power consumption, choose Option A1(+5/-5V)
15 - 18 65
SW-U070-8S
(Absorptive)
Fast Switching		 0.5 - 15 4.8 75 2.1:1 60 ns 100 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 120mA
for lower power consumption, choose Option A1(+5/-5V)
15 - 18 65
0.1 - 18 GHz
SW-V040-8S
(Reflective)
 High Isolation		 0.1 - 8 3.9 80 1.9:1 350 ns 400 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 100mA
-12(-/+0.5)V / 100mA		 Fig.3
8 - 18 75
SW-V010-8S
(Absorptive)
 High Isolation		 0.1 - 14 4.3 80 2:1 250 ns 300 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 100mA
14 - 18 75
SW-V000-8S
(Reflective)
Fast Switching		 0.1 - 15 4.6 70 2:1 50 ns 150 ns +30dbm
(+27dBm Max
Below 300MHz)		 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 110mA
15 - 18 65
SW-V070-8S
(Absorptive)
Fast Switching		 0.1 - 15 5.0 75 2.1:1 50 ns 150 ns +24dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
 -12(-/+0.5)V / 120mA
15 - 18 65
2 - 20 GHz
SW-P04W-8S
(Reflective)
 High Isolation		 2 - 8 3.8 80 1.9:1 350 ns 400 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 100mA
-12(-/+0.5)V / 100mA
 for lower power consumption, choose Option A1(+5/-5V)		 Fig.3
8 - 20 75
SW-P01W-8S
(Absorptive)
 High Isolation		 2 - 14 4.0 80 1.9:1 250 ns 300 ns +27dbm 5W
(1μS, PW)		 +5(-/+0.25)V / 260mA
-12(-/+0.5)V / 100mA
 for lower power consumption, choose Option A1(+5/-5V)
14 - 20 75
SW-P00W-8S
 (Reflective)
Fast Switching		 2 - 16 3.0 70 2:1 50 ns 90 ns +30dbm 10W
(1μS, PW)		 +5(-/+0.25)V / 240mA
-12(-/+0.5)V / 110mA
 for lower power consumption, choose Option A1(+5/-5V)
16 - 20 4.0 60




All Models:
 Impedance: 50 Ω Nominal
 Control Input Characteristic: TTL, One Unit Load (1.6mA Sink / 40μA Source)
 Control Logic: 8-Controls / Floating-High
Logic "0" for path "ON" ( 0 to +0.8V)
Logic "1" for path "OFF" (+2.2 to +5.0V)
 Connectors:
- RF Input / Output SMA (female)
- Supply Solder Pins
- Control Solder Pins

Environmental Ratings:
 Temperature:
- Operating -55 degC to +95 degC
- Storage -60 degC to +110 degC
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) units with combination of the following options may require some specification tradeoffs from the standard
2) Some options may not be available on all models
 Supply Voltages  Video Suppression Filters
   A1)  +5 ( -/+ 0.25 )V  /  -5 ( -/+ 0.25 )V { Recommended for Low Power Consumption <> Additional Switching Delay (On/Off Time) }   G1) VF @ Common Port <> 0.25dB additional Loss
  A2)  +5 ( -/+ 0.25 )V  /  -15 ( -/+ 0.5 )V   G2) VF @ J1 - J8 Ports <> 0.25dB additional Loss
  A3)  +12 ( -/+ 0.5 )V  /  -12 ( -/+ 0.5 )V G3) VF @ All Ports <> 0.5dB additional Loss
  A4)  +15 ( -/+ 0.5 ) V  /  -15 ( -/+ 0.5 )V
    Other Possible Options (Consult Factory)
  RF Connectors - Higher Isolation
  B1) J1 - J8 SMA(M)   - Switch Without Driver
B2) All SMA(M) - Higher Power
B3) COM Port with SMA(M)   - Etc.

 Control Function
  F1) Inverted Logic, ("1" = Path "ON")
