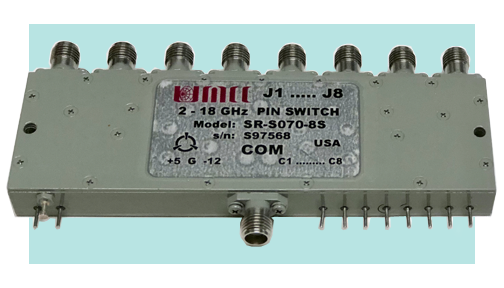

| High Power SP8T Switches | |||
|
|
Common Specifications | ||
|
|
Available Options | ||
|
> Specifications are subject to change
without notice > for Specifications-Sheet in PDF, click on the product model number > to see the actual response curves, click on "  " (subject to availability) |
|||
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|||
Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
Isolation (dB) Min |
VSWR Max |
Rise/Fall Time Max |
On/Off Time Max |
Power Handling, Max |
Supply Voltage |
Outline Drawing |
|
| cw/avg | peak | |||||||||
|
SR-A01H-8S (Absorptive)
|
0.2-1 | 0.75 | 55 | 1.2:1 | 200ns | 300ns | 2W (Note 1) |
15W (Note 3) |
+5(-/+0.25)V / 250mA -12(-/+0.5)V / 150mA |
Fig.1 |
|
SR-C00H-8S (Reflective) |
0.5-2.7 | 1.3 | 40 | 1.25:1 | 50ns | 100ns | 2W (Note 1) |
15W (Note 3) |
+5(-/+0.25)V / 100mA -12(-/+0.5)V / 100mA |
Fig.1 |
|
1) Hot Switching 2) Cold Switching 3) 1μS Pulse Width Max |
||||||||||
| All Models: | ||
Impedance: |
50 Ω Nominal | |
|
Control Input Characteristic: |
TTL, One Unit Load (1.6mA Sink / 40μA Source) | |
|
Control Logic: |
Logic "0" ( 0 to +0.8V) <> Logic "1" (+2.2 to +5.0V) | |
|
Connectors: |
||
| - RF Input / Output | SMA (female) | |
| - Supply / Control | Solder Pins | |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
Available Options: 1) units with combination of the following options may require some specification tradeoffs from the standard 2) Some options may not be available on all models |
|||
|
Supply Voltages |
Control Function |
||
| A2) +5 ( -/+ 0.25 )V / -15 ( -/+ 0.5 )V | F1) Inverted Logic, ("1" = Path "ON") | ||
| A3) +12 ( -/+ 0.5 )V / -12 ( -/+ 0.5 )V | F2) Binary Coded Logic, (3 Controls) | ||
| A4) +15 ( -/+ 0.5 )V / -15 ( -/+ 0.5 )V | |||
|
|
|
|
|
